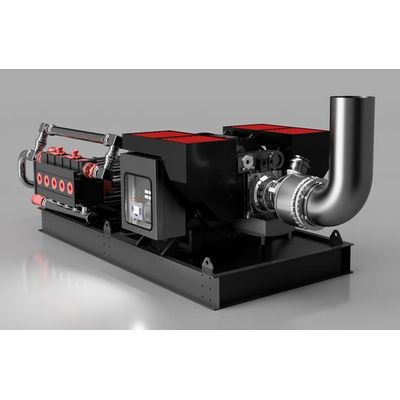

Turbine-Marine - 4,600 HP Direct Drive Power Module
Direct Drive Pump Module Consists Of One Turbine (Turbine Marine TM4000), With An Output of 4,600HP @ (ISO 59F/15C). Or an output of 3,500HP @ (100F/35C). The Module Is Available As A “Turn Key” Pump Package. Or, Can Be Delivered As A 4.600HP (ISO 59F/15C) Engine And Gearbox Power Module”, For Final Packaging By A 3rd Party.
Most popular related searches
ENGINE SPECIFICATIONS
HP Rating of the Twin Turbine Marine Engine (TM4000) Specifications | Is at Single Cycle Performance
- Output Performance: 4,600HP (ISO 59F / 15C)
- Heat Rate: 12,716 Btu/kWh | 13,415 KJ/kWh
- Thermal Efficiency: 26.8%
- Fuel Flow Liquid: 1,910 lbs/hr | 866 kg/hr
- CNG /LNG (1060 btu/cf): 760 scf/min
- Heating Value (LHV): 20,548 Btu/lb | 47,786 KJ/kg
- Fuel Pressure Required (min/max) 250 Psig | 1,379 KPA – 1,723 KPA
- Gas Delivery System: Turbine Marine
- Gas Regulation: Turbine Marine / Or customer supplied
- TM Gas Delivery system pressure input: 275PSI to 4000 PSI
- Exhaust Gas Flow 28.0 lb/s | 12.7 kg/s
- Exhaust Gas Temperature 1,115 F | 602 C
- Engine skid weight (less pump): Approximate 20,000 lbs
- Engine skid dimensions (less pump): 25’L x 8’W x 5’H
ELECTRONICS SPECIFICATIONS
- Engine Controls: Customer preference
- Pump Controls: Customer preference
PUMP SPECIFICATIONS
- Customer supplied pump package
- Customer supplied drive shaft
