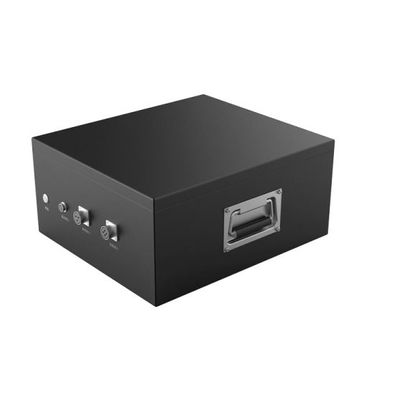

Fethium - Model AGV - 48V 75Ah-101 -48V 75Ah Lithium Battery Robot Special Battery
AGV lithium battery 48V/75Ah robot special battery is the latest and most advanced battery for AGV (Automatic Guided Vehicle) robots. It is a high quality, high performance battery specifically designed for AGV robots.
Most popular related searches
lithium battery
lithium ion battery
battery short circuit protection
low-carbon energy
low carbon energy
battery protection
battery design
energy saving
battery performance
battery temperature
- BUY: One-to-one free customization
- SKU: 48V 75Ah-101 Category: 48v lithium ion battery Tags: agv lithium battery, robot battery
Precautions:
- Do not short circuit, reverse connection, crush or disassemble.
- Do not heat or incinerate.
- Do not immerse in any liquid.
- Store at 30~50% SOC.
- It is recommended to charge it every 3 months.
- The storage area should be clean, cool, dry and ventilated.
Introduction:
AGV lithium battery 48V/75Ah robot special battery is the latest and most advanced battery for AGV (Automatic Guided Vehicle) robots. It is a high quality, high performance battery specifically designed for AGV robots.
This AGV lithium battery has a nominal voltage of 48V and a capacity of 75Ah. It is capable of providing a long-lasting and reliable power supply, no matter the environment or situation. The battery is rechargeable and has a charging voltage of up to 54V , allowing it to be easily charged in any situation.
This battery has a wide operating temperature range of -20? to +60?, making it suitable for a variety of applications and environments. It also has a low self-discharge rate, meaning it can maintain its charge for a longer period of time.Additionally, it has a built-in protection circuit that ensures safe operation and prevents damage to the battery in the event of overcharging or over-discharging.
The AGV lithium battery 48V/75Ah robot special battery is highly durable and resistant to shock and vibration. This makes it an ideal choice for AGV robots that need to work in harsh and extreme conditions.
Overall, the AGV lithium battery 48V/75Ah robot special battery is an ideal choice for AGV robots. It is reliable and efficient, providing a long-lasting and reliable power source. Its durability and resistance to shock and vibration make it the perfect choice for any AGV robot application.
- Brand: Fethium
- Cell model: 32650/3.2V/5Ah
- Battery specification: 32650/15S15P/48V/75Ah
- Nominal voltage: 48V
- Nominal capacity: 75Ah
- Charging voltage: 54.6V
- Charging current: ≤15A
- Discharge current: 15A
- Instant discharge current: 35A
- Discharge cut-off voltage: 41.25V
- Finished internal resistance: ≤200mΩ
- Battery weight: 35Kg
- Product size: 400×350×185 (Max)
- Charging temperature: 0~45?
- Discharge temperature: -20~60 ?
- Storage temperature: -20~40?
- Temperature protection: 65?±5?
- Battery shell: cold-rolled sheet metal powder spraying
- Lithium battery protection: short circuit protection, overcharge protection, over discharge protection, overcurrent protection, temperature protection, equalization, etc.
- Field of application: Robotic AGV
- Copper-nickel composite molding nickel strip: use copper-nickel composite molding nickel strip to connect the battery core, which is ultra-safe, ultra-reliable, and ensures the passage of large currents;
- High-current connector: Weipu high-current connector is used, and the maximum current can pass 50A;
- Communication interface: RS485 communication protocol is adopted, which can read battery voltage, current, temperature, capacity and other information;
- Data communication management: use software to manage chips, precise data transmission, and precise temperature control to minimize potential safety hazards.
- The battery pack is safe, with a temperature probe, and the temperature exceeds the automatic start protection;
- The cycle life of the battery pack is high, in line with the concept of low carbon, energy saving, and environmental protection;
