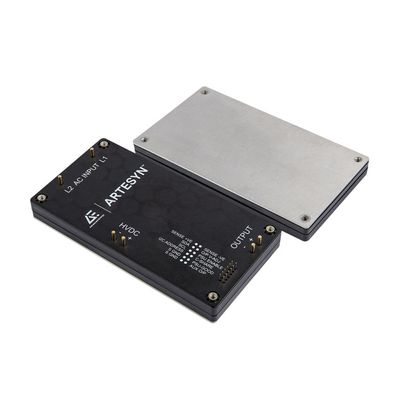

Advanced Energy - Model Artesyn - AIF-500 Series -500 W AC-DC Full Brick Module
Advanced Energy’s Artesyn AIF42BAC-01N series full-brick module accepts a wide 90 to 264 VAC input. Rated at 504 W, the module has a high conversion efficiency of 93% typically and provides a nominal isolated output voltage of 12 VDC with a 10 V auxiliary output. Featuring an industry-standard 2.4 x 4.6 in fullbrick form factor and a height of only 0.55 in. This family of modules is particularly focused on providing contact-cooled applications such as I.P. sealed applications where the power converters are located inside the applications I.P. Sealed casing. The functions and features (such as internal inrush-limiting, active current-share, Auxiliary Output and PMBus) of this family have been provided to enable ease of use in applications with minimize external component requirements.
- Input voltage 90 - 264Vac
- Input voltage Frequency 47hz to 63hz
- Output Noise 120mV pk-pk max (12V version)
- Output voltage 12 Volts
- Output current 42 Amps
- Auxilary Output 10V at 250mA
- Hold-up HVDC 380Vdc
- Control Output voltage Adjust -20% to +10% Vout
- Isolation 4000Vdc Input to Output
- Isolation 2500Vdc Input to Baseplate
- Isolation 100Vdc Output to Baseplate
- Efficiency >91.5% low-line input
- Parallel unit capability Up to 10 units
- Thermal Derating 100% power at 100degC baseplate
- Efficiency >93.5% High-line input
- Input voltage 90 - 264Vac
- Input voltage Frequency 47hz to 63hz
- Output Noise 120mV pk-pk max (12V version)
- Output voltage 12 Volts
- Output current 42 Amps
- Auxilary Output 10V at 250mA
- Hold-up HVDC 380Vdc
- Control Output voltage Adjust -20% to +10% Vout
- Isolation 4000Vdc Input to Output
- Isolation 2500Vdc Input to Baseplate
- Isolation 100Vdc Output to Baseplate
- Efficiency >91.5% low-line input
- Parallel unit capability Up to 10 units
- Thermal Derating 100% power at 100degC baseplate
- Efficiency >93.5% High-line input
- Output Power (W): 500
- Length (Inches): 4.6
- Width (Inches): 2.4
- Height (Inches): 0.5
- Mounting Type: BMP; Through Hole
- Minimum Output Current (A): 0
- Maximum Output Current (A): 42
- Output Voltage Range (V): 10.8V to 56.6V
- Minimum Output Power (W): 500
- Maximum Output Power (W): 500
- Minimum Input Voltage (V): 86
- Maximum Input Voltage (V): 264
- Warranty (Years): 2
