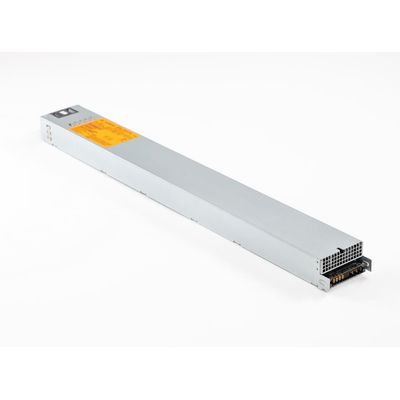

Advanced Energy - Model Artesyn - ORv3 HPR -5.5 kW Power Supply Unit (PSU) Unit

The ORv3 HPR PSU reduces power losses with a leading peak efficiency that approaches 98%. And, because the ORv3 HPR PSU offers very high pulse load capability and a higher power factor in response to dynamic loading it smooths out the data center peak pulse power requirements for GPU applications. This means less burden on the AC power infrastructure of your data center.

The current-sharing mode allows the hot-swappable PSU modules and shelves to be paralleled to achieve high power in n + 1 or n + n redundant configurations. Multiple shelves can be connected in parallel, enabling rack power levels in excess of 100kW.

• Peak Efficiency greater than 97.5%
• Highly accurate droop + active current sharing
• Hot swappable
• Cooling with internal fan with speed control
• Modbus/PMBus communication with interface for monitoring and control
• Black box fault logging

• Industry leading efficiency. This helps reduce operating expenses and reduces the burden on cooling infrastructure
• Very high reliability. This results in a very low failure rate
• Top rated customer support

• Output Power (W): 5500
• Input Voltage (V): 0 to 305
• Length (Inches): 25.2
• Width (Inches): 2.89
• Height (Inches): 1.57
• Mounting Type: Shelf
• Minimum Output Current (A): 0
• Maximum Output Current (A): 112
• Output Voltage Range (V): 49 to 50V
• Minimum Output Power (W): 0
• Maximum Output Power (W): 5500
• Minimum Input Voltage (V): 0
• Maximum Input Voltage (V): 305
• Warranty (Years): 1
