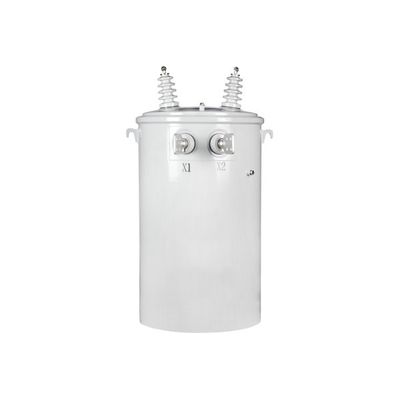

Meta Power Solutions -Â 75 KVA Single-Phase Pole-Mounted Transformer
Meta Power Solutions’ single-phase pole-mounted transformers are critical components in power distribution networks. They are made of premium materials and typically support residential, commercial, and industrial loads in cities and rural areas. They are filled with sustainable and biodegradable dielectric fluid, which offers excellent fire protection and a longer lifespan. MPS offers a comprehensive line of single-phase pole-mounted transformers and associated components. Our entire range results from our unique research, development, and manufacturing, making us exceptional in the industry. As a result, we have gained extensive experience in every aspect of pole-mounted transformer technology. Customers can count on our products’ quality and reliability.
- Cooling Type: ONAN
- Primary Voltage: 25/37.5 KV
- Secondary Voltage: 120/240/480 V
- Frequency: 60 Hz
- Temperature Gauge
- Liquid Level Gauge
- Pressure Vacuum Gauge
- Drain/Sampling Valve
- Externally-operable tap changer switches
- Surge Arrester
- Lifting Lugs
- Current Limiting Fuse
- Pressure Relief Valve
- We’re one of the leading transformer companies in the nation that designs, manufactures, and delivers high-quality oil-filled pole-mounted transformers.
- Our high-quality oil-filled pole-mounted transformers have an expected useful life of more than 30 years.
- We can design and build custom pole-mounted transformers for special applications
- Transformers can be installed and operated in any environment and location
- Transformers offer high efficiency, low environmental impact, and exceptional operational reliability, resulting in a safe, dependable means of electric power
- Enhanced overload capability without affecting insulation life
- KVA Rating : Up to 333 KVA
- Tap-Changer : Off-load tap changer
- Rated Voltage : Up to 37.5 kV
- Type of Cooling : ONAN
- Manufacturing Standards : IEEE/ANSI, CSA
- Dielectric Liquid : Mineral oil, Silicon oil, Biodegradable Oil
- Rated Frequency : 60 Hz
- Winding Material : Copper / Aluminum
MPS offers single-phase pole-mounted distribution transformers engineered for residential overhead distribution loads. They are also appropriate for industrial lighting, light commercial loads, and various power applications. These transformers are designed to meet the application requirements typically found on electric utility distribution systems.
Each unit is manufactured in compliance with IEEE, ANSI, and NEMA standards. The transformers are available with three different fluids: mineral oil, silicone transformer oil, or less flammable seed oil. In general, pole-mounted transformers are equipped with off-load tap changers.
We have invested in some of the most advanced testing equipment in the industry. We offer a comprehensive range of testing compliant with the latest ANSI, IEEE*, and NEMA standards.
- Leak Test
- Full-wave Impulse Testing
- Polarity and Phase Relation
- Ratio Test
- Resistance Measurements
- Induced and Applied Potential
- No Load Loss and Excitation Current
- Load Loss and Impedance Voltage
- Please add content from the following URLs:
- https://metapowersolutions.com/medium-voltage-transformer-testing/
- https://metapowersolutions.com/types-of-transformers/
- https://metapowersolutions.com/products/75-kva-single-phase-pole-mounted-transformer/
- https://metapowersolutions.com/products/100-kva-single-phase-pad-mounted-distribution-transformer/
- https://metapowersolutions.com/products/167-kva-single-phase-pole-mounted-transformer/
- https://metapowersolutions.com/applications/transformer-ultimate-guide/
- https://metapowersolutions.com/products/3750-kva-pad-mount-three-phase-oil-immersed-distribution-transformer/
- https://metapowersolutions.com/products/75-kva-single-phase-pad-mounted-distribution-transformer/
- Rating : 75 KVA
- Type : Pole-Mounted Distribution Transformer
- No. of Phases : 1
- Frequency : 60 Hz
- Primary Voltage : 25/37.5 KV
- Secondary Voltage : 120/240/480 V
- Tapping Range : ±2 x 2.5%
- Winding Material : Copper / Aluminum
- Core Material : Grain Oriented Silicon Steel Sheet
- Impedance : 1.5 – 4.5 %
- Efficiency : 99.19%
- Cooling Type : ONAN
- Average Winding Rise : 55 °C, 55/65 °C, 65 °C
- Fluid Type : Non-PCB Mineral Oil / FR3 Biodegradable
- Tap Changer : Off-Load Tap Changer
- IEEE Standards : C57.12.00, C57.12.20, C57.12.31, C57.12.35, C57.12.90, C57. 91 and C57.154
- NEMA Standard : NEMA TR 1
- Tank Coating : IEEE Std C57.12.31-2010
- Certification : UL Listed
This 15 KVA pole-mounted transformer comes in a single-phase configuration with a voltage rating of 25 – 37.5 KV on the primary side and 120 – 480 V on the secondary side. The unit’s cores are made from Grain Oriented Silicon Steel using state-of-the-art technology. This single-phase pole-mounted transformer is highly energy efficient with lower heat emissions, resulting in fewer cooling requirements.
