Turbine-Marine - 8,800 HP Direct Drive Power Module

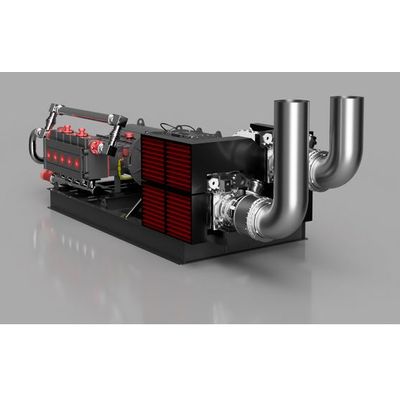

Direct Drive Power Module Consists Of Two Mechanically Connected Turbine Marine Turbines (TM4000), With a Combined Output of 8,800HP (@ ISO 59F/15C). Or a combined output of 7,040HP (@ 100F / 38C). The Power Module Is Available As A “Turn Key” Power Package. Or, Can Be Delivered As A 8,800HP (at ISO 59F / 15C). Engine And Gearbox Power Module”, For Finaal Packaging By A 3rd Party.
Most popular related searches
ENGINE SPECIFICATIONS
HP Rating of the Twin Turbine Marine Engines (TM4000) Specifications | Is at Single Cycle Performance
- Output Performance: 8,800HP (ISO 59F / 15C)
- Heat Rate: 21,193 Btu/kWh | 22,358 KJ/kWh
- Thermal Efficiency: 26.8%
- Fuel Flow Liquid: 3,183 lbs/hr | 1,443 kg/hr
- CNG /LNG (1060 btu/cf): 1,267 scf/min
- Heating Value(LHV): 34,247 Btu/lb | 79,643 KJ/kg
- Fuel Pressure Required (min/max) 275 Psig | 1,379/1,723 KPA
- Gas Delivery System: Turbine Marine
- Gas Regulation: Turbine Marine / Or customer supplied
- TM Gas Delivery system pressure input: 275 PSI to 4000 PSI
- Exhaust Gas Flow 47 lb/s | 21 kg/s
- Exhaust Gas Temperature 1,112 F | 600 C
- Engine skid weight (less pump): Approximate 25,000 lbs
- Engine skid dimensions (less pump): 25’L x 8’W x 5’H
ELECTRONICS SPECIFICATIONS
- Engine Controls: Customer preference
- Pump Controls: Customer preference
PUMP SPECIFICATIONS
- Customer supplied pump package
- Customer supplied drive shaft
