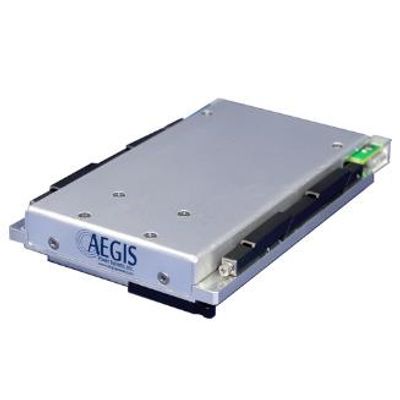

Aegis - Model VPX1PH3UC310-SA -AC-DC Power Supply with Alignment to SOSA Technical Standard
This single phase AC-DC power supply provides 85-264Vac input to 28Vdc output with 310 watts and built-in EMI filtering. This rugged slide-in power supply offers +12V and +3.3V (Aux) outputs and has been developed in alignment with the Sensor Open Systems Architecture™ (SOSA) technical standard for use in modular open systems architectures for sensor management.
The VPX1PH3UC310-SA product achieves high efficiency AC-DC conversion with .99 power factor correction with conduction cooling through the wedge locks. Advanced power converter features include MIL-STD-461G* EMI filtering, alignment keys for using multiple units in one chassis, I2C monitoring and IPMC redundancy, and wide operating temperature range for harsh environments. The 3U form factor and 5HP single-slot dimensions are SWaP optimized and interoperable per VITA 48.2 standards. Protections include over- and under- voltage/current/temperature and surge. This PSU supports power payloads for a variety of C5ISR applications such as radar, communications, electronic warfare, and electro-optical defense equipment.
- Built-in EMI filtering
- I2C Sensor monitoring
- IPMC Redundancy
- Alignment keys for using multiple units
- .99 Power Factor Correction
