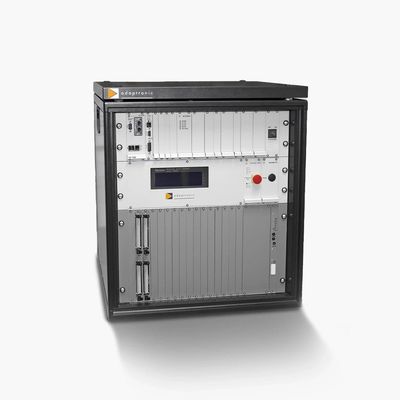

Adaptronic - Model NT 700 -Universal and Fully Modular Low-Voltage and High-Voltage Wiring Tester Device
The NT 700 low-voltage and high-voltage tester checks low voltages up to 250 VDC, voltage resistance up to 6000 VDC/5000 VAC, insulation up to 6000 VDC, and protective conductors up to 25 AAC. The universal and fully modular NT 700 test device performs connection tests, short-circuit tests, and component tests up to 25 VDC at up to 32,768 test points. With the intuitive NT Control software, the device is easy to operate from a PC. Convenient test program editors, fault localization tools, and comprehensive result reports facilitate quality assurance. The NT 700 offers the widest range of expansion options, such as additional measuring generators (DC/AC), an LCR measuring bridge, four-pole measurement as of 100 µΩ, insulation tests up to 10 GΩ, and protective conductor testing up to 25 AAC. The NT 700 is a multifunctional test device for both mobile use and integration into control cabinets.
NT 700
Metric
- High voltage test (AC) max.: 5000 V
- Test current (AC) min.: 200 mA
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 5000 V
- Test voltage (DC) max.: 6000 V
- Test current (DC) max.: 2 A
- Test points, total max.: 32768
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 6000 V
- DIO voltage max.: 24 V
Imperial
- High voltage test (AC) max.: 5000 V
- Test current (AC) min.: 200 mA
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 5000 V
- Test voltage (DC) max.: 6000 V
- Test current (DC) max.: 2 A
- Test points, total max.: 32768
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 6000 V
- DIO voltage max.: 24 V
