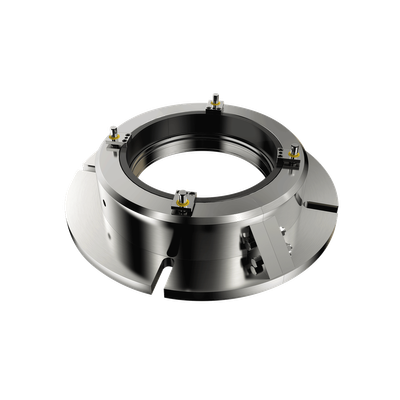

Fugesco - Model FA400 Series - Adjustable Split Hydro Turbine Seal
FromFugesco inc.
The FA400 series fully adjustable split hydro turbine seal is designed for small to medium hydro applications, effectively sealing turbine shafts to prevent water leakage and ensure smooth operation. The seal is compatible with turbine pressures up to 15 m/s and supports a range of shaft sizes from 250 mm to 600 mm with RPM specifications of 980 for 250 mm, 615 for 400 mm and 500 mm, and 430 for 600 mm. Recommended barrier pressure falls between 0.2 to 0.34 Bar with a maximum water quality requirement of 50 microns. The seal accommodates radial shaft dislocation of +/- 0.20 mm and axial dislocation between 1 to 2 mm. Its design incorporates compression springs, pre-assembled in non-split options to close the faces, and wear indicators can be added as required. Constructed from stainless steel, the housing ensures durability, while the split design utilizes a minimum of three to four drive screws for secure fitment. The floating sealing ring guarantees optimal flatness between sealing faces, leading to robust and efficient performance in diverse operational settings.Most popular related searches
Fully Adjustable Split Hydro Turbine Seal
- Operational Limits
- Max turbine pressure
- Velocity 15 m/s (250 mm – 980 RPM, 400 mm – 615 rpm, 500 mm – 615 rpm, 600 mm – 430 rpm)
- Recommended barrier pressure
- 0.2 to 0.34 Bar
- Recommended water quality
- Max 50 microns
- Radial shaft dislocation
- +/- 0.20 mm
- Axial shaft dislocation
- 1 - 2 mm dynamic, static mode - can be adjusted according to turbine requirement
- Sizes available: 250 to 600 mm
- Method of closing the faces: Compression springs, pre-assembled in non-split versions
- Mechanical Wear indicators: As standard / no. Available as add-on
- Drive screws for the shaft size: Minimum 3 to 4 set screws
- Number of splits: 2 segments
- Material for the housing: Stainless steel
- No shaft wear
- Cost effective
- Quick delivery
- Floating sealing ring that ensure
perfectflatness between sealing faces
