Wattius - Model wBMS-MX -Advanced Battery Management System
The Wattius wBMS-MX is a versatile battery management system designed for high-voltage applications. It includes a Battery Monitoring Unit (BMU) and Cell Monitoring Units (CMU12s), with each CMU capable of managing up to 12 cells. A single BMU can support up to 24 CMU12s, totaling management of up to 288 cells in series. This system is engineered for seamless scalability, allowing multiple BMUs to be connected in parallel, thus extending the system's capacity without additional components. The wBMS-MX provides precise voltage measurements with a maximum error of ±1.5 mV and monitors external temperatures on three channels. Its adaptability is enhanced by comprehensive I/O options, including CANbus, Bluetooth, and USB interfaces. It also offers efficient smart string connection and disconnection with a control interface compatible with both Energy Management Systems (EMS) and inverters. Equipped with extended diagnostics, configurable outputs, and both high-voltage and isolation measurement support, the system is robust and reliable for demanding energy environments.

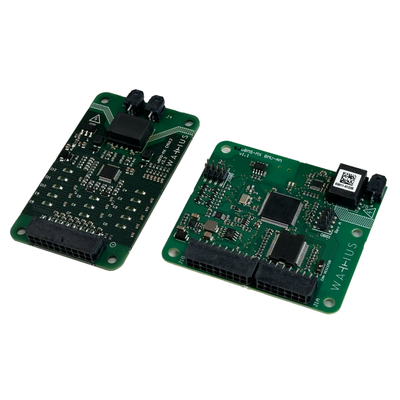

The Wattius wBMS-MX is a compact distributed Battery Management System developed for high-voltage batteries.
This system is composed by the BMU (Battery Monitoring Unit) and CMU12s (Cell Monitoring Units, each for up to 12 cells). Each BMU supports up to 24 CMU12s for a total of 288 cells in series.
Multiple BMUs can be connected in parallel without additional hardware. The system automatically handles smart string connection / disconnection and provides a single control interface with EMS / Inverter.
Each CMU12 can monitor up to 12 cells with total maximum voltage measurement error of ± 1,5 mV, and 3 external temperatures. The BMU provides multiple configurable I/O options, as well as CANbus, Bluetooth and USB interfaces.
Performance
- 12-cell Cell Monitoring Unit.
- Up to 24 CMU12s per BMU.
- Up to 16 BMU automatic parallelization.
- Support for external isolation monitors and HV sensors.
- High-precision SoC algorithm.
- EMC CE Class A & B compatible.
Connectivity
- CANbus, Bluetooth & USB.
- Real-time logging of events, alarms and data to micoSD card.
- Monitoring, configuration & analysis with free wBMS-Toolkit PC software.
Safety
- Internal diagnostics and safety-critical redundant systems.
- Cell and relay open-wire detection.
- Power supply : 9 – 36 Vdc.
- Consumption : Active: < 1 W, Deep sleep: < 35 mW.
- Supported CMUs : Up to 24 CMUs per each BMU. Compatible with all wBMS-MX and wBMS-HX CMU models.
- Current sensing : External 0 – 5 Vdc single-ended hall current sensor. Accuracy < ± 0,1 mV.
- Support for external CAN bus current sensors.
- CAN interface : CAN bus 2.0 A/B (Up to 1Mb/s). Referenced to external power supply.
- Configurable termination resistor with switch.
- Other interfaces : Mini USB 2.0. Bluetooth 5.0 Low Energy.
- General input : 2x analog / digital (configurable) signal up to 36 Vdc.
- 4x dry contact digital input.
- Configurable to multiple functions (ignition key, HVIL, relay feedback etc.).
- General output : Maximum total output 4 A.
- 6x low-side switch. Up to 2 A nominal, 3 A peak. Extended diagnostics.
- Configurable to multiple functions (contactor, precharge, alarm, coolong, etc.).
- High-voltage measurement : Direct support with wBMS-VIC. Support for third-party external CAN bus.
- Isolation measurement : Direct support with wBMS-VIC. Support for third-party external CAN bus.
- Memory :
- Integrated redundant non-volatile memory: system configuration, maximeter and flags.
- MicroSD support (up to 32 GB).
- Parallelization :
- Up to 16 BMUs in parallel. Smart parallelization management without additional hardware.
- Multiple battery string management in each BMU.
- Dimensions : L80 x W70 x H16 mm. 4x M4 mounting holes.
- Operating temperature range : -40 to +85 ºC.
- Connectors : Molex MicroFit.
