Adaptronic - Model NT 800-5 -Advanced Distributed LV Test System

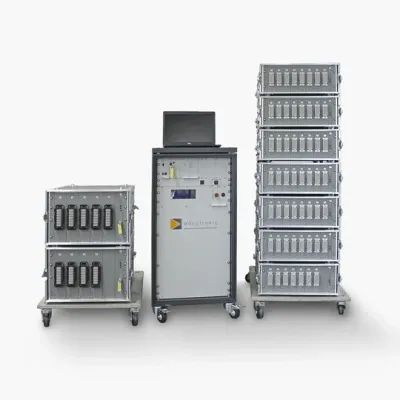

The NT 800-5 is a low-voltage tester for particularly large test items and features an innovative test technology for checking wire harnesses in installed condition. The NT 800-5 can save 70% of adapter cables and does not require any additional cables or power supply thanks to ATA (active termination adapter) technology. This not only saves space, but also makes it particularly easy to maintain. The distributed test system adapts to the test item as the remotely controlled test point units (TPUs) are flexibly positioned around the product, such as an aircraft hull, a wing, or a complex wire harness. With a capacity of up to 131,072 test points and a test voltage of up to 35 V direct current, the NT 800-5 even masters the most demanding testing jobs. The NT 800-5 optimizes production processes by allowing electrical tests to be carried out in parallel with other production steps.
NT 800-5
Metric
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Dimensions/height: 265 or 1070 mm
- Width: 530 or 600 mm
- Dimensions/depth: 650 or 800 mm
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 40 V
- Test current (DC) max.: 100 mA
- Test points, total max.: 131072
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 100 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 100 MΩ
- Capacitance measurement min.: 0.01 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 40 V
- DIO voltage max.: 24 V
Imperial
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 40 V
- Test current (DC) max.: 100 mA
- Test points, total max.: 131072
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 100 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 100 MΩ
- Capacitance measurement min.: 0.01 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 40 V
- DIO voltage max.: 24 V
