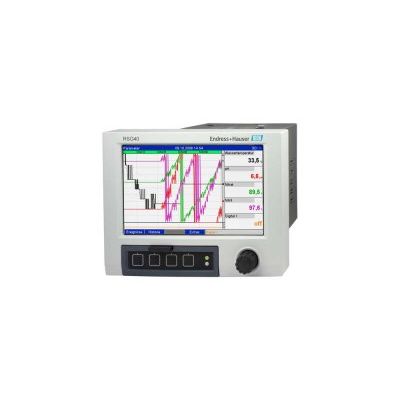

Memograph - Model M RSG40 - Advanced Graphic Data Manager
Paperless recording, visualization and monitoring of the process values at the same time. Safe and complete recording and visualization of all process sequences. The Memograph M RSG40 has a wide range of functionality, modular construction and a intuitive operator concept. With its brilliant 7” TFT display it is possible to display process values e.g. as curves, as a circular chart display or as an application-specific process screen. The Memograph M offer is completed with specific application packages. Memograph M - More than just a videographic recorder!
Most popular related searches
energy measurement
thermal energy
energy management
steam boiler
energy data logger
steam boiler efficiency
thermal energy monitoring
power plant technology
boiler efficiency
power monitoring
- Visual: 7" TFT display as onsite display for optimum readability
- Secure: Security package with person-specific access authorization and electronic signature (FDA 21 CFR 11)
- Flexible: Free choice of display mode. E.g. instrument, process screen and circular chart display
- Clear: Alarm management with all active, confirmed and historical alarms
- Practicable: Installation depth 158 mm, front-panel IP65, NEMA4; Operating via external USB keyboard, printout via USB printer
- Limitless: Integrated Web server, fieldbus (Profibus, Modbus), common standard protocols and interfaces such as USB, TCP/IP, OPC and Ethernet are supported
- Informative: Event search, automatic signal analysis
The solution for all your tasks. For example, for:
- Process measuring technology
- Power stations and energy supply
- Steam boiler monitoring/efficiency calculation
- Food and pharmaceutical industry
- Plant and apparatus engineering and construction; Milk pasteurization plants
- Environmental and climate measuring technology; Storm overflow control
- Quality assurance and production
- Batch analysis; Tele-Alarm functions
- Testing bays and laboratory applications
