S:FLEX LEICHTmount - Model G S/EW - Aerodynamic Racking System for Solar Installations
The main advantages of the LEICHTmount G S/EW: Installation without pile driving or major excavation work. Suitable for a variety of substrates such as earth, gravel, concrete or terrain where pile driving is not possible. S variant with 15° and 20° tilt angle available. EW version with 10° tilt angle at least 40 cm ground clearance. Short installation times and easy storage. Reduced transport costs thanks to efficient use of materials and an extremely space-saving design.
Components

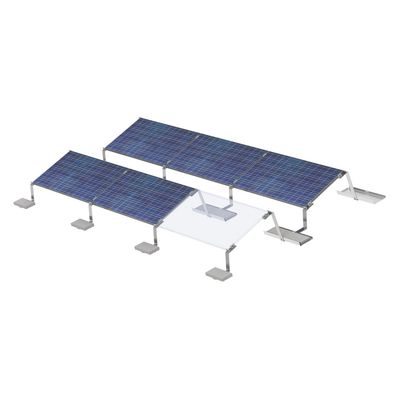

LEICHTmount G S supports
These supports consist of optimised materials and are supplied with 15°/20° tilt angles. The rail-less support system offers flexible mounting options, even for uneven terrain and a wide variety of substrates.
LEICHTmount G S ballast tray
In addition to the ballast trays, ground screws are also available for areas with high wind loads.
LEICHTmount G S module clamps
Height-adjustable module and end clamps for all frame heights from 30–50 mm with standard earthing pins.
Data
Application
Ground installation
Orientation
South
Pitch
15° and 20°
Shading calculation area
18° or 25°
Module size (LxW)
1500–2250 mm x 950–1150 mm (other module sizes on request)
Ground slope
Max. 20°
Wind load
Up to 2.4 kN/m²
Snow load
Up to 2.4 kN/m²
System size
Min. 2 x 3 modules
Components
LEICHTmount G EW supports
These supports consist of optimised materials and are supplied with a 10° tilt angle. The rail-less support system offers flexible mounting options, even for uneven terrain and a wide variety of substrates.
LEICHTmount G EW ballast tray
In addition to the ballast trays, ground screws are also available for areas with high wind loads.
LEICHTmount G EW module clamps
Height-adjustable module and end clamps for all frame heights from 30–50 mm with standard earthing pins.
The aerodynamic alternative
S:FLEX LEICHTmount G S/EW ground mount systems are available for PV arrays with south or east/west orientation. Both variants are aerodynamic and can be installed on a variety of substrates – without pile driving or major excavation. In addition to ballasting, we have developed optional anchoring methods. Our S systems are available with tilt angles of 15° and 20°. In the E/W version, the modules are inclined by 10° and have a minimum ground clearance of 40 centimetres.
One of the shortest installation times on the market and the ability to accommodate a full megawatt on one truck make the S:FLEX LEICHTmount G an extremely material-saving and cost-effective solution.
Data
Application
Ground installation
Orientation
East/west
Pitch
10°
Shading calculation area
18°
Module size (LxW)
1500–2250 mm x 950–1150 mm (other module sizes on request)
Ground slope
Max. 20°
Wind load
Up to 2.4 kN/m²
Snow load
Up to 2.4 kN/m²
System size
Min. 2 x 4 modules
