ZIM Agri - Model 1 V - Agri-PV System

SHARE

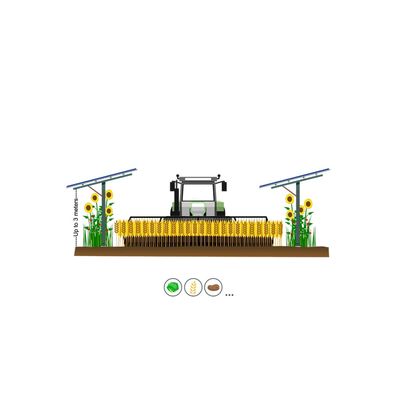

With its flexible height and inclination adjustments, our ZIM Agri 1 V system can easily be adapted as an Agri-PV system. Wheat, barley, or other plants can be grown between the rows.

Most popular related searches
agri-PV
photovoltaic system
photovoltaic system engineering
photovoltaic module
solar power
renewable energy
photovoltaic module design
solar power production
solar power product
  • ZIMMERMANN Agri-PV is a high quality, state-of-the-art PV system designed for multiple dual land-use scenarios.
  • ZIMMERMANN offers systems which allow crops to be grown under or between PV module rows.
  • Innovative design means installation, maintenance, and operational costs are minimised.
  • System flexibility allows the cultivation of both short and tall crops and supports different cultivation methods.
  • High level of flexibility accommodates customer- and crop-specific adjustments and solutions.
  • Installation and commissioning of the system is fast, easy, and safe.
  • Incorporated cable-management enhances safety and reduces maintenance.
  • Every system is supplied with comprehensive quality and warranty statements.

  • Lower heat under the Agri-PV system encourages a stable and uniform ripening time.
  • Insurance costs against hail damage are reduced significantly.
  • Better working conditions for pickers allows longer working hours, even at midday.
  • Combined production of fruit and green energy gives the farmer a unique selling proposition.
  • Solar power availability makes fruit production almost totally CO2-free.
  • Agri-PV offers good wind protection, reducing the need for hedges or windbreaks and making more space available for crops.

Potential crops: Grains, lettuce, potatoes, and some vegetables.

  • Livestock can also graze on the land.
  • Installation by pile driving and clamping (using a module clamp or slide-in system).
  • Space directly under the system is available to promote biodiversity. This can be cultivated to provide food base for local wildlife or a flower meadow.
  • Distance between the rows and the height of the system can be adjusted to meet the requirements of a specific crop.
  • System inclination: 10 to 35 degrees is possible.
  • Can be installed in continuous rows or as individual table constructions.
  • Few components leads to quick and easy assembly with commonly available tools.
  • Module height, spacing, and inclination is adjustable during assembly.
  • Integrated cable management for safety and low maintenance.
  • System durability and resistance is guaranteed by high-quality components and a certified galvanizing process.
