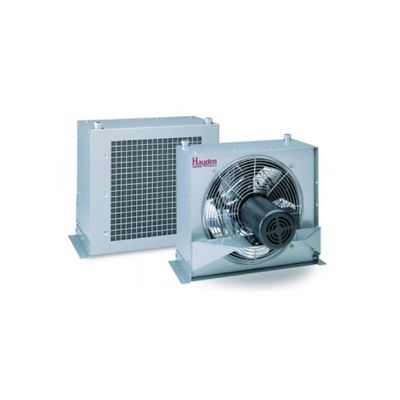

Air Cooled Heat Exchanger (ACHE)

• Copper tubing (¾” diameter) and continuous rippled aluminum fins maximize thermal efficiency at a low cost
• Continuous rippled fins provide structural rigidity, increased surface area, and provide better air flow
• Each tube is fitted with our SwirlFlow Turbulator, increasing heat transfer by up to 550% over bare tube heat exchangers
• SwirlFlow Turbulator produces a high velocity, mixed flow that enhances self-cleaning for a maintenance-free operation
• Maximum operating pressure of 300 PSI
• Maximum operating temperature of 350°

• Compact design for easy placement and installation with standard base mounting brackets
• Optional full enclosures that are high quality, durable construction
• Motor options:
  • 230-460V - 3 Phase - AC
  • 110V - Single Phase - AC
  • 12V/24V - DC
  • Hydraulic Motors
• Standard, integrated core guard provides longer fin life and high-efficiency heat transfer
• Options for SAE or FPT connections
• Dedicated single-pass and multi-pass units with female ports minimize plumbing costs and hardware
• Integrated pressure relief valve for cold start-up and high-flow bypass protection.

• Our air cooled heat exchangers can be provided with other accessories for process control.

Hayden's Air Cooled Heat Exchangers serve a wide range of industries, such as:

• Renewable energy
• Power Generation
• Oil & Gas
• Immersion Cooling
• Automotive
• Agriculture
• Mining
• Marine
• Petrochemical
• LNG
