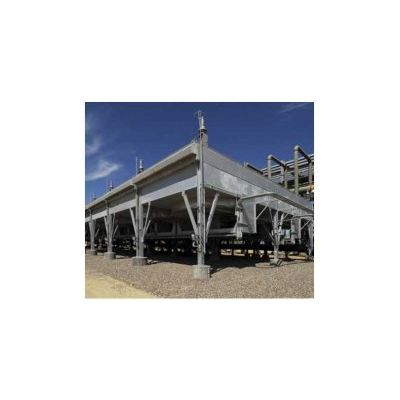

Chart - Model ACHX H - Air Cooled Heat Exchangers
Electric motor driven, horizontal fin fan cooler, available in both forced and induced draft, the H Model is typically employed in high horsepower natural gas, hydrocarbon and petrochemical processing services.
Most popular related searches
air cooled heat exchanger
natural gas processing
electric motor
lubricant oil
heating and cooling
heat exchanger
air heat exchanger
gas cooling
process gas cooling
petrochemical
- Available as forced (HF) or induced (HI) draft
- Single or multiple fan (up to 4)
- Fan sizes 36" to 168" diameter
- Electric motor driven
- Belt or gear drive
- Cooling surface area up to 200,000 ft2 per bay (multiple bays can be linked for a single service)
- Up to 7 individual services
- Foundation mounted
- Easy tube bundle access (HF model)
- Galvanized structure and zinc metallic headers as standard
- Natural gas processing (acid gas removal, dehydration, NGL recovery, mercury removal, fractionation, sweetening)
- Hydrocarbon processing
- Petrochemical processing
- Engine cooling
- Gas compression (stage cooling)
- Lube oil cooling
- Refrigerant condensing
