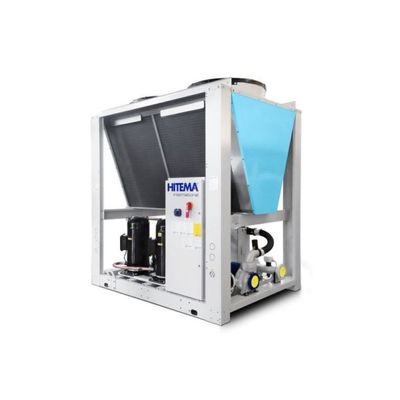

Hitema - Model HBS Series -Air to Water Reversible Heat Pump

All the models are equipped with scroll compressors, from one to 9 compressors in one, two or three refrigerant circuits, axial fans with electronic fan speed control, brazed plate condenser and brazed plate evaporator. The refrigerant used is R410A, but are also available with R454B

Offered in packaged solutions these Units cover all the user’s needs, from 190 to 720kW in a single Unit.

They can be fully customized upon customer request, with optional components such as water pump, carbon or stainless-steel tank, electronic expansion valve, smart defrost, soft starter, antivibration and low noise version.

The degree of electrical protection is IP54 for all the models. All the units are rigorously tested the Hitema production site before the shipment to ensure to the Customers the best performances and continuity of operation even in the most difficult work conditions.

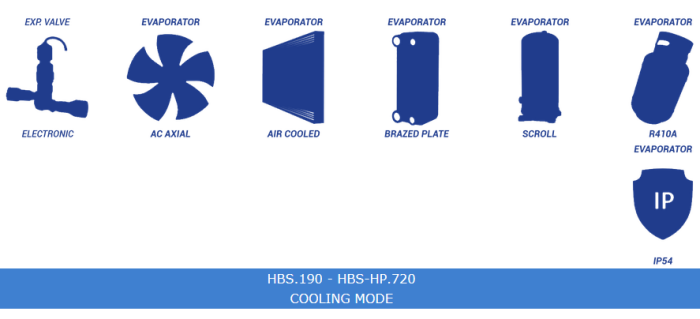

• Compressors: Scroll
• Condenser: Brazed plate
• Evaporator: Air-Cooled, with copper tubes and aluminium finned core
• Expansion Valve: Electronic
• Fans: AC axial with cut phase fan speed regulator
• Protection Rating: IP54
• Refrigerant: R410A – R454B – R32
• HEATING CAPACITY: 211kW - 750kW

• Modular construction of the condensers: extreme design flexibility
• Multiple compressor design: extreme reliability with great control capacity
• Integrated hydraulic module with tank as an optional (inverter pumps on request)
• AC axial with Electronic fan speed control (cut-phase): EC fans on request
• Different control capabilities on the basis of specific application
• PCO5+ CONTROL with master-slave functions in the multi modules installation
• Already built installation can be INCREASED IN CAPACITY in case of modification of the energy demand
