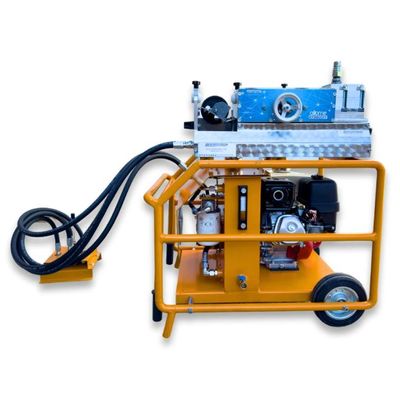

Allame Skyfibertech - Model HydroSky -Cable Blowing Machine

The HYDROSKY fits cable sizes of 6 mm up to 24 mm and microducts size from 12mm up to 50 mm. Dual hydraulic motor drive system makes the operation stable and accuracy high even in long distance.

Its heavy-duty construction and adjustable pushing force and speed make it easy to operate. Hydraulic driven, from its 9 HP Honda engine, for constant force in any field condition.

• Pushing Force : 0 – 200 kg
• Pushing Speed : 0 – 180 m/min
• Cable Diameter Range (OD) : 6 – 24 mm
• HDPE Pipe Diameter (O.D.) : 20 – 63 mm
• Hydraulic Drive System (Max) : 100 Bar
• Engine : Honda GX270, 9 HP (Gasoline)
• Hydraulic Oil Capacity : 25 L (filled by user)
• Minimum Heavy Duty Hydraulic Hose : 25 mm (1″)
• Operating Air Pressure : 12 Bar
• Recommended Air Consumption (at 12 Bar) :
• 0–25 mm: 4 m³/min (150 CFM)
• 26–30 mm: 5 m³/min (185 CFM)
• 31–35 mm: 7 m³/min (250 CFM)
• 36–40 mm: 10 m³/min (375 CFM)
• 41 mm and up: 12 m³/min (450 CFM)
