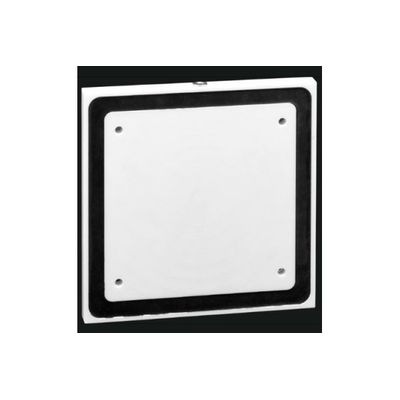

AEG - Model AAN X2L -Antenna
The antenna ANN X2L is a passive unit designed for the ARE i2 reader. It is well suited for both, static as well as dynamic applications.
Most popular related searches
- ELECTRICAL CHARACTERISTICS
- reading system ARE i2 LF
- operational frequency 125 kHz, 134.2 kHz
- ENVIRONMENT
- storage temperature -20°C up to +70°C
- operating temperature -20°C up to +70°C
- housing protection IP 65
- schock & vibration IEC 68-2-6 / 29
- DIMENSIONS
- Weight Ca. 1400 g
- Length 225 mm
- Width 225 mm
- Height 20 mm
- Material Plastic
- ADDITIONAL INFORMATION
- cable length between antenna electronics and reader: 2 m flexible cable
