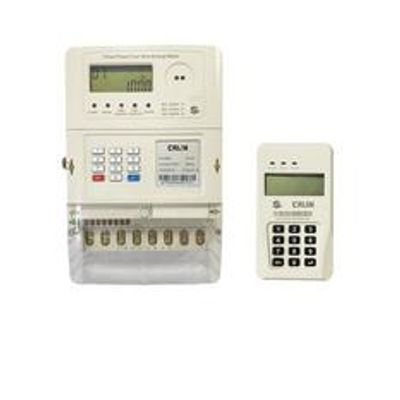

Calinmeter - Anti - Tamper Commercial Electric Meter
The CA368-M is a tamper-proof reinforced multi-function three phase four wire electric meter for commercial and inustrial metering environments. It supports unidirectional measurement of active and reactive energy and provides up to four tariffs. The meter operates in four-wire pattern in one, two or three phase configurations as well as three-wire partterns. The meter is compliant with IEC 62053, EN 50670 (MID) in its mechanical spec and is intended to be installed in any situation that also meets these standards.
The meter is designed to detect various tamper including reverse connection, cover opening, magnetic jamming, abnormal blackout, earth missing, current or voltage unbalance. It is intended for revenue protection against tamper and fraud and serves as secured and reliable as well credit dispenser and metrological instruments.
The CA368-M operates with modularized communication unit and offers free selection of communication networks such as PLC, RF, M-bus, GPRS/ GSM, 4G Lte according to local infrastructure conditions. This feature provides utility and service provider maximum flexibility to choose the most suitable communication for meter`s connection with AMR / AMI servers.
- Flexible connection terminal block available for both whole current and CT/VT connection
- Multi-rate with Time of Use tariff plan setting
- Power threshold limitation
- LED consumption indicator
- 4 Channels element measurement to provide valuable information
- Optical and RS485 com port
- Modular design for extended AMR AMI functions
- Reduce operational and inventory cost
- Easy to install and deploy, especially ideal for retrofitting due to BS foot print
- Fraud detection and alarm for revenue protection
