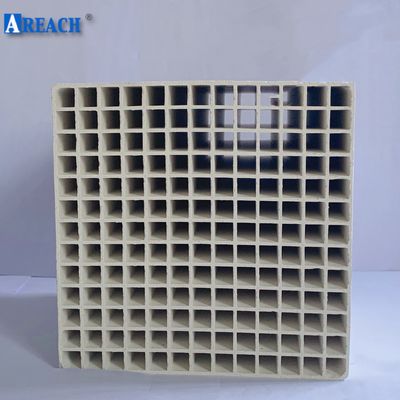

AREACH - Model 13*13 Cells - Cordierite Blocks
From RTO Ceramic Blocks - Cordierite Blocks
Cordierite block is specified as extruded ceramic monolith with high temperature strength and chemical stability which has been widely applied in regenerative thermal processes to recover thermal energy also it can resolves RTO siloxane clogs in someway.
Blockage are very unlikely thanks to the straight channel structure
-
Most popular related searches
Advantages
Lighter unit weight than other materials.
Whiter color than other materials.
Widely used in overseas markets.
Long service life.
Low maintenance costs.
High thermal shock resistance.
Less inland transportation costs.
Good Thermal Conductivity .
Good Thermal shock resistance .
Physical Property
Density :1.5-1.9G/CM3
water Absorption:15-25%
Coefficient of thermal expansion(20-800℃)≤ 3x10-6k -1
Specific Heat (20-1000℃): 900-1150J/Kg.K
Thermal Conductivity (20-1000℃):1.2-1.8W/m.k
impact thermal resistance≥350℃/Min
Strength ( A axis)≥29MPA
Compressive( B axis)≥6
Material Chemical Composition
AL2O3/ Alumina Oxide:28-38%
SiO2 /Silicon Oxide :45-55%
MgO:11-14%
Others<5%
