Atlas - Model 800 SL WS M -Medium/Large Incinerator for Burning Solid and Liquid Waste
The 800 SL (B) WS M is a medium/large incinerator for burning solid and liquid waste with a high water content, (above 50%), available with a 30L or 70L (waste bag) sluice size, and suitable for larger merchant vessels.
Most popular related searches
large incinerator
solid waste incineration
incineration
incinerator
sludge oil incineration
sludge oil
combustion waste
waste combustion
waste gas
burner
- Combustion Capacity (kW) : 814
- Combustion Capacity (kcal/h) : 700.000
- Combustion Capacity Solid Waste (IMO waste specification) : 100 kg/h max. 400 kg/24 hours
- Combustion Capacity Liquid Waste (IMO standard is 20% water content) :
- 70 l/h at 0% water content
- 95 l/h at 20% water content
- 140 l/h at 50% water content

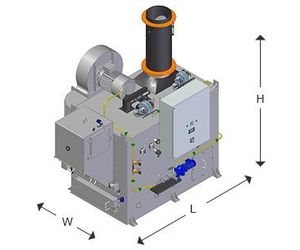

800 SL WS M
- W : 2013mm
- L : 2957mm
- H : 2852mm
800 SL B WS M
- W : 2013mm
- L : 3080mm
- H : 2852mm
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
