Komax Lambda - Model 5 Series -Automated Platform Data Wire

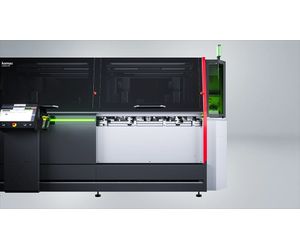

The Lambda 5 platform is a modular machine base for the fully automatic assembly of multi-step contact systems. With Lambda 5, the process modules are freely configurable and can be arranged according to the processing requirements of the various connector systems. A modular and standardized software framework ensures a uniform visualization, which makes it extremely easy to adapt the individual processes. The processes`` and platform``s modular design, with the option to upgrade to a Lambda X, offers maximum investment security. Processes can also be easily expanded or replaced. Thanks to its small space requirements and short cycle times, the machine operates with maximum energy efficiency.
Maximum Productivity with the Innovative Transfer System

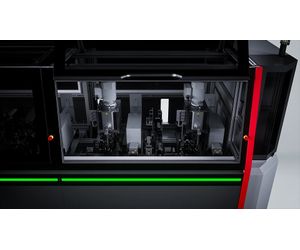

Freely movable workpiece carriers minimize the amount of production space required and the cycle times, since the modules can be arranged in a row without unnecessary free space.

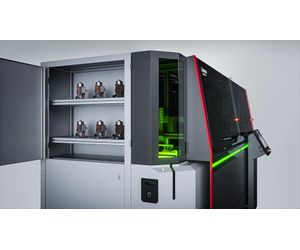

A built-in storage solution for tooling sets and applicators, as well as simple and configurable jobs, enable the system to be converted quickly.

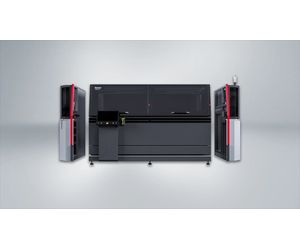

The Lambda 5 can be quickly and easily converted by replacing a module or upgraded to a highly automated Lambda X by converting it.
Short cycle times enable outstanding and repeatable assembly quality with low production costs per cable.
Metric
- Approximate energy consumption with 3`500`000 wires: 18`000 kWh
- Cable length (uncoiled): 1300 mm
- Wire length coiled max.: 15000 mm
- Wire outer diameter max.: 6 mm
- Shortest wire length for one-sided processing: 130 mm
- Electrical connection: 3 × 400 V AC ± 10%, 50/60 Hz
- Current: 32A, typeD
- Compressed-air connection: 7-10 bar
- Air consumption: ~135 l/min
- Weight: ca. 2200 kg
- Width: 3890 mm
- Length: 2750 mm
- Height (with tower light): 2300 mm
- Noise level: ≤ 80 dBA
- Ambient temperature min.: 15 °C
- Ambient temperature max.: 40 °C
- Cycle time: >4.5 sec
- Connector systems: Coax, mini Coax, Automotive Ethernet UTP, and STP
- Maximum yearly output: 2150000
- Transfer system: linear Magnetic Transfer
- Processing outside the specifications: Processing outside the specifications upon request.
Imperial
- Approximate energy consumption with 3`500`000 wires: 18`000 kWh
- Cable length (uncoiled): 51.2 in
- Wire length coiled max.: 590 in
- Wire outer diameter max.: 0.24 in
- Shortest wire length for one-sided processing: 5.1 in
- Electrical connection: 3 × 400 V AC ± 10%, 50/60 Hz
- Current: 32A, typeD
- Compressed-air connection: 101-145 bar
- Weight: ca. 4850 lb
- Width: 153 in
- Length: 108 in
- Height (with tower light): 91 in
- Noise level: ≤ 80 dBA
- Ambient temperature min.: 59 °F
- Ambient temperature max.: 104 °F
- Cycle time: >4.5 sec
- Connector systems: Coax, mini Coax, Automotive Ethernet UTP, and STP
- Maximum yearly output: 2150000
- Transfer system: linear Magnetic Transfer
- Processing outside the specifications: Processing outside the specifications upon request.
