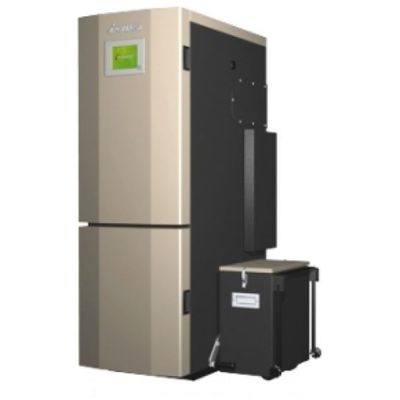

Ponast - Model KP 12S (19,5kW) -Automatic Boiler for Wood Pellets
Our newcomfort series represents a completely new generation of automatic boilers. Its design is based on a series Standard, but contains a number of improvements. The major ones included, for example: New modern control unit with an intuitive control (touchscreen). Control of up to 5 heating circuits, sanitary water, accumulation tank and solar system. New design, improved insulating properties, high combustion efficiency - fuel savings. Boiler KP 12S with possible operation of continuous output from 5,8 kW do 29 kW. Fullyautomatic boiler KP 12S is equipped with automatic heat exchanger cleaning and ash removal. Its operation can be controlled equithermally on the basis of outdoor temperature.
- Power: 19,5 kW
- Fuel: pellets
- SVT: 1374
Catalog number: HKXI1300R
This is an automatic boiler controlled by thermostats. Permanent service is not needed, occasional service consists of controling the fuel level in the bin and checking the amount of ash in the ashtray.
Fuel: Boilers are intended for combustion of wood pellets of a diameter of 6 mm and 8 mm.
Boilers consist of boiler body – a steel weldment with wall thickness of 3 – 6,3 mm; linear burner made from heat-resistant stainless steel, ceramic parts, boiler jacketing with thermal insulation, electronic control unit and fuel feeders. The boiler also includes components to ensure safe operation. Automatic control of operation is provided by control unit often together with room and SW thermostats. The boiler output can be set in the range 30 – 100% of rated output and in this entire range the boiler achieves the same efficiency and emission limits. The boiler must have operating fuel tank, which can be placed freely around the boiler. All Ponast´s KP boilers are Czech products.
- Output: 19,5 kW
- Output range: 5,8 - 19,5 kW
- Fuel consumption: 1,3 - 4,4 kg x hod -1
- Efficiency: 90,5 %
- Flue gas temperature: 79 - 127 °C
- Minimal operation chimney draught: 8 Pa
- Recommended temp. of heating water: 55 - 80 °C
- Dimensions: 537 x 1066 x 1444 mm
- Weight: 310 kg
- Conecting voltage: 230 V AC ± 10%, 50Hz ± 2Hz
- Electric input (2 motors + fan): 173 W
