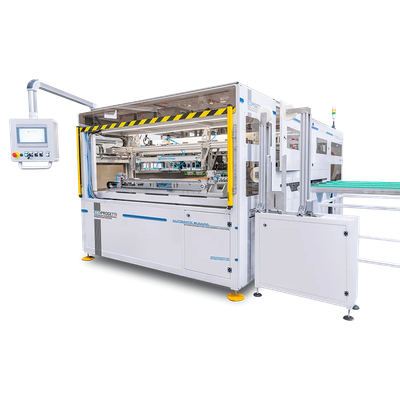

Ecoprogetti - Model ECOBUSSING -Automatic Bussing Machine for PV Panel
FromEcoprogetti srl
The ECOBUSSING automates induction soldering for string interconnections of solar panels, managing the cutting and bending of ribbons. It’s compatible with any bus bar/wire count and efficiently solders with Ecoprogetti’s patented system. The machine can bend the ribbon to fit the requirements of your specific PV panel. Also Vertical ribbon, U-bend, L-bend and overlapped ribbon.
Most popular related searches
- High-performance induction soldering system (Patented);
- Compatible with: M2, G1, M4, M6, M10, G12 cell sizes (from 156.75 mm to 210mm)
- Compatible with: 5 to 24 BB/Wires;
- Central unit for half-cut cells soldering;
- Vertical ribbon, L-shape, U-shape and overlapped ribbon management;
- Machine capacity up to 160 panels/hour (800MW/year line);
- No need of operator;
- Best Cycle time: < 22.5 seconds;
- The number of bus bar doesn’t affect the efficiency;
- Custom panel size;
- Custom panel’s matrix;
- String alignment cameras;
