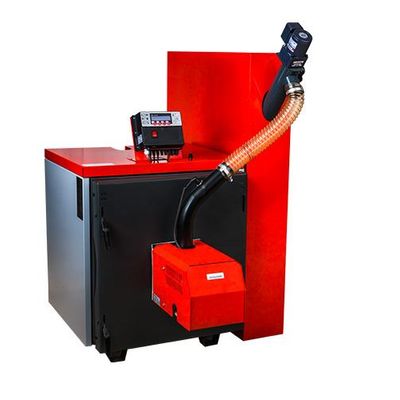

Thermostahl - Model PLC -Automatic Pellet Boiler Unit

The product is offered as a complete pellet unit including the boiler, pellet burner, feeder and pellet tank. The door opening is reversible, it can be adjusted on both sides.

It offers easy cleaning and maintenance and comes with a big volume ash box under the boiler. The silo volume can be chosen according to the desired autonomy.

• Complete pellet unit with compact dimensions
• Built-in controller with multiple functions and LCD screen
• Automatic cleaning by means of compressed air (additional compressor requested)
• Automatic power setup according to heat demand
• Automatic pellet feed according to power level
• Ceramic ingition element for long-life operation and fast ignition
• Control of central heating pump and hot water / buffer pump
• Temperature sensors for boiler and hot water temperature
• Three different silo types to choose

Safety devices:

• Elbow-shape feeder to prevent backfire entry from burner into pellet hopper
• Melting feeding hose
• Safety contact thermostat
• Fuse protection
• In case of power interruption, all parameter settings are stored in the memory of the controller
