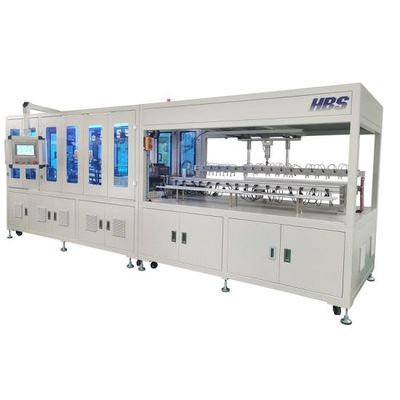

Model HBS-SP1800 - Automatic Tabber Stringer For Solar Cells

Net capacity: 1250-1400 cells/hour. Cell size: 30-166*166mm. Cell thickness: 160um~300um. Busbar: 5BB 6BB 9BB change over time 0.5H(feature). Ribbon width: 0.6mm-1.5mm. Busbar thickness: 0.15-0.21mm. Ribbon position: Less than 0.1mm shift. Flux coating: Sunk auto coating flux. Soldering method: Infrared heating. Breakage rate: ≤0.1%(A Grade Solar Cell). String length: 2100mm(2-12pcs). Length tolerance: ±0.5mm. Straightness tolerance: ±0.5mm. Cell gap: 0.8-30mm(adjustable). Cell position : Mechanic Position. Cell string transmission : Teflon transmitation belt, driven by servo motor. Cell defect detection type: crack/cold welding/cell reveral /surface stain by Eye Visual. Layup method : Automatic layup/manual layup. HMI : Integrated touch screen IPC with cantilever operation box and English/Chinese interface. Uptime : ≥95%.
