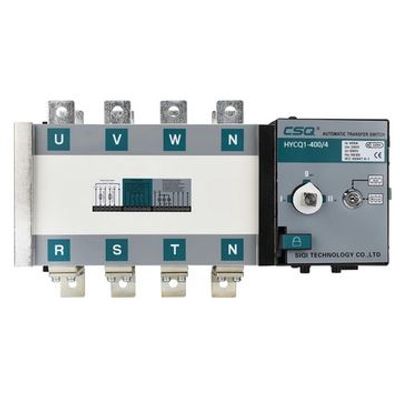

CSQ - Model HYCQ1 Series - Automatic Transfer Switch
HYCQ1 Automatic Transfer Switch Series integrates the switching mechanism and control logic functions, and is a new type of automatic transfer switch product. It is suitable for commercial and industrial power distribution systems with rated voltage up to 690V, rated frequency of 50Hz or 60Hz, rated voltage of 380V, and maximum current up to 3200A for contactor usage. It can automatically switch between normal and backup power sources in the power supply system, or safely isolate two groups of load equipment.
Most popular related searches
automatic transfer switch
power distribution system
power supply system
power distribution
backup power
electromagnetic compatibility
industrial power
permanent magnet motor
distributive power
distributed power
- Mode: HYCQ1
- Voltage: AC400V
- Rated Current: 20A-3200A
- Pole:4P
- Electrical level: PC level
- Certification: CE
- Excellent installation.
- Incorporating dual-row composite contacts, horizontal pull mechanism, permanent magnet synchronous motor pre-storage, and microelectronic control tech, it achieves near-zero arcing without an arc extinguishing cover.
- Incorporates dependable mechanical and electrical interlocking mechanisms.
- Employing zero-returning technology (double split), it can be immediately switched to Zero in emergencies (simultaneously disconnecting two power supplies), with clear ON-OFF indicators, padlock, and other functionalities. This ensures reliable isolation between the power supply and the load.
- Boasts exceptional reliability, with a lifespan exceeding 8,000 cycles. Features an integrated design for precise, flexible, and smooth switch conversion. Exhibits strong electromagnetic compatibility, robust anti-interference capabilities, and immunity to external disturbances. Demonstrates a high level of automation.
- The switch offers multiple input/output interfaces, facilitating convenient remote PLC control and system automation.
- The switch operates independently, without requiring external control components.
- Beautiful appearance with full size (10A-3200A), The logic board handles power sampling, assessment, and issuing execution commands. The motor and interlocking mechanism manage switching between I-0-II paths, while microswitches provide positional feedback to the logic board. This ensures accurate, flawless transitions between the positions.
