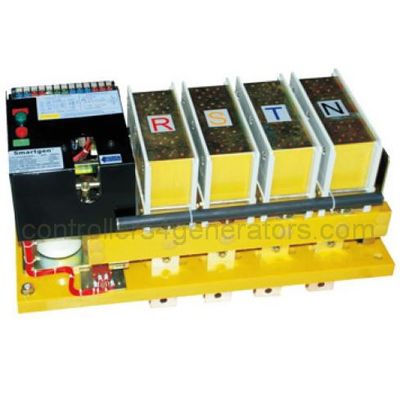

SmartGen - Model SGQ1000A-4P - Automatic Transfer Switch for High Voltage Applications

SHARE
The SmartGen SGQ1000A-4P Automatic Transfer Switch (ATS) is designed for power applications with an operation voltage not exceeding 660VAC and capable of transferring loads. The ATS series offers rated currents ranging from 40A to 2000A, distributed across 3-pole and 4-pole configurations. Specifically, the series SGQ1000A-4P features 'M' type classification, suitable for loads up to 2000A. This switch operates under electromagnetism drive structure in a two-stage PC class type, supporting fast load transfer with transfer times of ≤80ms. Its functionality spans a range of environments including high-rise buildings, telecommunications, coal mines, marine settings, industrial plants, healthcare facilities, and military installations. The switch uses a magnet coil driving structure with interlocking mechanical and electrical features, ensuring there is no short-circuit occurrence. The major loop contact terminal uses a 'V' design, and the coil energizes only during transfer, significantly extending the switch's lifespan. The control power of the coil comes from a priority AC/DC power source, eliminating the need for additional control power. Indicators for electrical and mechanical status, along with NO/NC voltage-free auxiliary contacts, enhance operational efficiency and safety.
Most popular related searches
automatic transfer switch
coal mine
AC power source
coal industry
battery storage
load current
power grid

Automatic Transfer Switch (ATS) is used which operation voltage is no more than 660VAC, and may transfer with load. The ATS rated current series is40A, 63A, 80A,125A, 160A, 250A, 400A, 630A, 800A,1000A,1250A,1600A,2000A,be divided up two types with 3 poles and 4 poles. The ATS of 40-125A is defined with "N"; 160-400 is defined with "T"; 630A-2000A is defined with "M".

SGQ Automatic Transfer Switch (ATS) is used in conditions from AC660V 50/60HZ to DC250V which under electromagnetism drive structure and two-stage PC class type. SGQ ATS can make fast load transfer (transfer time ≤80ms) of two ways power supply. Also ATS can be widely used in high buildings, post, telecommunications, coal mines, ships, industry, health care, military facilities and so on. 2-way power supply can be grid, auto start genset, storage battery and etc..

SGQ Automatic Transfer Switch (ATS) adopts structure of magnet coil driving and interlocking of electric and mechanical. The structure of major loop contact terminal consists of one dynamic and two static contacts. And the dynamic contact is in "V" type design, in order to ensure there is no short circuit of the 2-way power supply. "N" and "T" type use structure of double coils while "M" type use single coil operation. The coil only energized while it is transferred which can extremely extend the using life of switch. The control power of coil is supplied from priority AC/DC power, so there is no use to add another control power. The switch has electrical and mechanical close indication by itself and also offers 2 way NO/NC voltage free auxiliary contacts at the same time.
