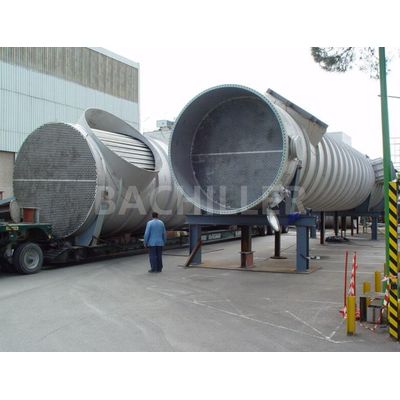

Bachiller - Shell and Tube Heat Exchangers
Bachiller designs and manufactures all kinds of tailor-made shell and tube heat exchangers, according to the main international mechanical design codes, using the ultimate design software and according to the particular specifications of the client.
- Weight: Up to 130 Tn.
- Diameter tube sheet: From 125 mm up to 5.500 mm.
- Thickness tube sheet: From 20 up to 450 mm.
- Tube bundle length: From 300mm up to 15.000 mm.
MECHANICAL DESIGN
- MA – ASME VIII div.1 – AD-2000 – EN-13445 – API-660 – BS-5500.
- Automatic calculations: Microprotol / B-JAC / Compress / PVElite.
- Finite Element Analysis (FEA).
- Thermal design by HTRI y B-JAC.
- Most frequent configurations: BEM, BEU, BKU, BES, AES, AEN, NEN, AEX, DEU, double tubesheet.
APPLICATIONS
After Coolers, Boilers, Catalyst reactors, Concentrators, Condensers, Coolers, Double sheet exchangers, Evaporators NH3, Exchangers for liquids – gas, Heaters, Preheaters, Reboilers, Reflux condensers, Sublimators, Vacuum evaporators, Vaporizers.
INDUSTRIES
Biodiesel, Bioethanol, Biotechnology, Chemicals, Fine chemicals, Food industry, Formol – Formaldehyde, Natural extracts, Panels and wood, Petrochemicals, Pharmaceutics, Plastics, Polymers, Pulp and paper, Refinery, Resins, Spices and flavours, Surfactants, Thermal solar energy.
- Austenitic Stainless Steels
- Superaustenitic Stainless Steels
- Duplex and Superduplex Stainless Steels
- Nickel Alloys and Superalloys
- Titanium
- Cladding
