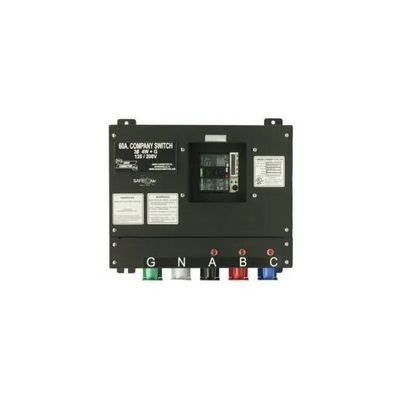

SafecamModel CSC-0610-SC - Series 16 Receptacles - 60 AMP - Basic Company Switch

SHARE

Basic Company Switch with Series 16 SafeCam® ( 60 Amp ). This UL Listed company switch has the basics for powering portable power distribution loads. It consists of a Type 1 enclosure, main circuit breaker, receptacles and phase indicator lights. Series 16 SafeCam® receptacles mate with standard Series 16 Cam devices. The SafeCam® System monitors the receptacles, preventing the main circuit breaker from being closed if there is an exposed receptacle. It automatically opens the main circuit breaker if a plug is removed under load. Series 16 SafeCam® receptacles are rated for 400 Amps, color coded, and mounted on the receptacle panel at bottom of the enclosure.

Most popular related searches
Company Switch Main Enclosure:
  • TYPE 1
  • Steel, black wrinkled powder-coat finish
  • Wall mounting brackets.
Series 16 SafeCam® 60 Amp Dimensions:
  • 15 1/2”H. x 18”W. x 6 1/2” D.
Series 16 SafeCam® 60 Amp Output:
  • (5) Series 16 SafeCam® panel mount color coded receptacles with snap-back protective covers.
Monitoring:
  • LED Indicator lights to indicate presence of phase voltage.
Labeling:
  • Laser engraved cam identifiers and panel rating.
  • Cable connection warning label per NEC Art 520.
Series 16 SafeCam® 60 Amp Rating:
  • 60A.
  • 120/208V.
  • 3Ø, 4W+G
Circuit Breakers:
  • Molded-case
  • UL489, 65K AIC @ 240V.
  • (1) 60A.
  • 3-pole
Series 16 SafeCam® 60 Amp Listing:
  • UL Listed


  • Electric power distribution center for theatre, convention centers, arenas, schools, churches, and events centers
  • Series 16 Cam receptacles
  • 60A. Main breaker rated 65K AIC
  • SafeCam® system monitors receptacles and activates shunt trip whenever a plug is disconnected from a receptacle
  • Latest version of the world’s first UL Listed Company Switch that was designed in 1986 by Union Connector

  • Dual neutral
  • Parallel sets of receptacles
  • Isolated Ground
  • Reverse Neutral / Ground
  • 1Ø – 120V., 120/240V.,
  • 3Ø – 277/480V., 208V., 480V.
  • Digital Meter
  • Custom color finish
  • Recessed or Pad mounting
  • Type 3R, 4 or 4X enclosure
