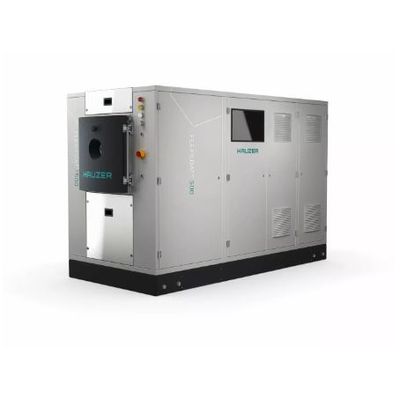

Hauzer Flexicoat - Model 500 - Batch System
The Hauzer Flexicoat 500 is the smallest Flexicoat system, offering the benefits of proven Hauzer technology at a smaller scale and lower investment. The Flexicoat 500 was designed with the needs of small coating service providers, universities, R&D institutes, and start-ups in mind. It is also a cost effective coating system for larger coating service providers who regularly need to coat small batches or small items – especially in sectors where turnaround time is critical.
- The renowned Hauzer quality on a smaller system
- Lower investment level and shorter lead time
- Dedicated system with proven technologies
- Two cathode positions for flexible configuration or higher deposition speed
Effective coating volume: Ø 300 x 350 mm
Internal chamber size: 600 * 600 * 640 mm
Max. system temperature: 600 °C
Max. heating power: 12 kW
Product tables: 4 x Ø 120
Max. product load: 120 kg
Amount of positions for deposition technologies: Two
Available technologies:
CARC+ and plasma source for plasma etching
Magnetron sputtering technology
Pulsing – for pulsed arc or HiPIMS
