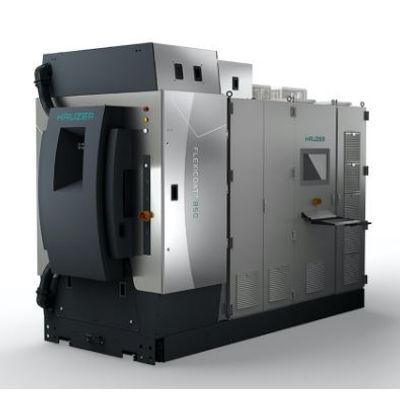

Hauzer Flexicoat - Model 850 - Batch System
The Hauzer Flexicoat 850 system has four available positions for deposition technologies, which gives it flexibility for a range of applications. The Flexicoat 850 is the common choice for coating cutting tools, automotive components such as piston rings and for R&D institutes. The system’s shielding is designed for ease of maintenance. An optional second door is available for ease of access. The system is built on a single frame, so it is easy to position.
Effective coating volume: Ø 500 x 500 mm
Internal chamber size: 800 * 800 * 900 mm
Max. system temperature: 600 °C
Product tables: range of tables for specific product dimensions
Max. heating power: 36 kW
Max. load: 600 kg
Amount of positions for deposition technologies: four
Available technologies:
Rectangular arc
CARC+ Flex
Magnetron sputtering
HiPIMS
Dual magnetron sputtering
Microwave
Focused-ion rapid etch
Plasma nitriding
