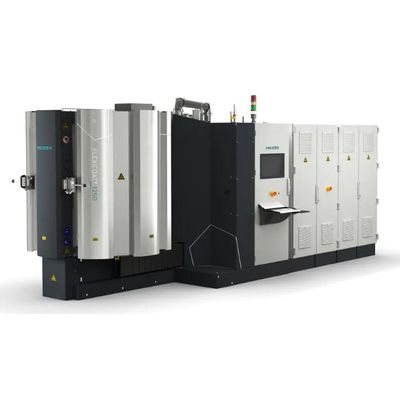

Hauzer FlexicoatModel 1250 -Batch System

SHARE

The Hauzer Flexicoat 1250 has been designed in sync with current market trends. It has a bigger loading capacity and optimised heating and cooling features. The system is spacious enough to accommodate larger volumes and reduce coating costs, yet small enough that customers can use it at capacity. The Flexicoat 1250 has the highest degree of flexibility in the Flexicoat family, with up to seven cathode positions. The innovative heating and cooling features make it the ideal choice for deposition of ta-C coatings.

Most popular related searches

Effective coating volume: Ø 810 x 850 mm

Internal chamber size: 1113 * 1113 * 1370 mm

Max. system temperature: 600 °C

Product tables: range of tables for specific product dimensions

Max. heating power: 54 kW

Max. load: 1000 kg

Amount of positions for deposition technologies: seven

Available technologies:

Rectangular arc

CARC+ Flex

Magnetron sputtering

HiPIMS

Dual magnetron sputtering

Microwave

Focused-ion rapid etch

Plasma nitriding

Special features:

Heating and cooling plates

Optional retractable central cooling feature
