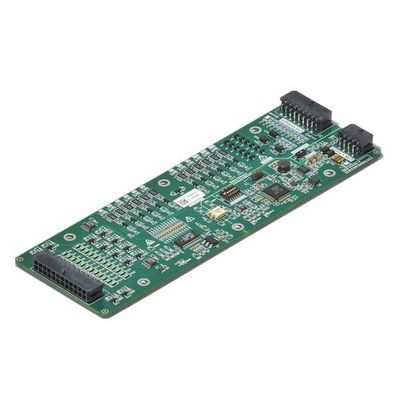

Stafl Systems - Model BMS1101S -Battery Management Systems

The BMS1101S Monitor Unit is designed to be used within an array of other BMS1101S Monitors and a Master BMS Controller (e.g. BMS1000M) to form a high accuracy Battery Management System. Data and commands are transmitted and received via CAN 2.0B interface which connects these units. Get accurate State of Health, State of Charge and Safe Operating Envelope data for your battery pack. The BMS1101S Monitor Unit measures the voltages of 6 – 12 series connected battery cells, and can apply a 22 Ω shunt resistor across each battery cell to bleed off excess charge (passive balancing). The BMS1101S also measures the resistance of up to 12 thermistors to determine cell temperatures.
