Infineon - Model IAUZ30N08S5N186 - Battery Management Systems

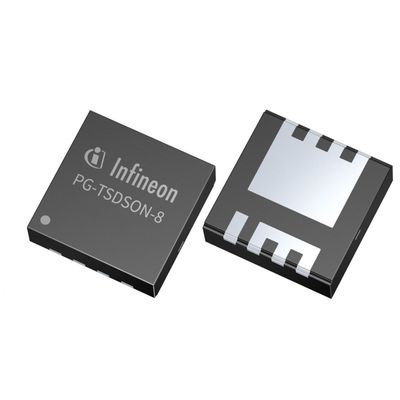

The IAUZ30N08S5N186 is a 18.6mR 80V MOSFET in a 3.3 x 3.3 mm² S3O8 package, using Infineon’s leading OptiMOS™ 5 technology. Next to others it is used in pumps, battery management systems as well as ADAS applications.
Most popular related searches
Summary of Features
- OptiMOSTM 5 – power MOSFET for automotive applications
- N-channel - Enhancement mode
- AEC Q101 qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
- ID (@25°C) max 30.0 A
- Package PG-TSDSON-8
- Polarity N
- QG (typ @10V) max 9.0 nC
- RDS (on) (@10V) max 18.6 m?
- Technology OptiMOS™-5
- VDS max 80.0 V
- VGS(th) min 2.2 V ; 3.8 V
