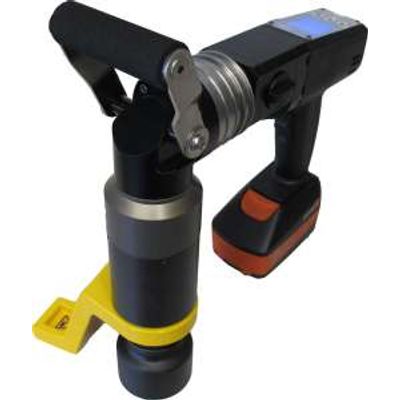

InnoTorcModel EMAWX Series - Battery-Powered Torque Wrench - Angle Version

SHARE

The Cordless Angle Nutrunner EMAWX Series is a versatile tool engineered for precise torque and angle applications in industrial settings. With a square drive output design, the EMAWX series offers a range of torque settings, providing minimum and maximum limits adjustable to specific task requirements. The lengths and heights are designed for comfortable handling and maneuverability in confined spaces, ensuring efficient operational use. The device features two distinct no-load speed settings, enabling users to adjust the rotation speed according to the task at hand. The ergonomic design minimizes operator fatigue, while the varied diameters and weights cater to diverse application needs. This series is particularly suitable for assembly lines and mechanical engineering applications where reliability and adaptability are paramount. Enhancements in design also ensure longevity and durability under continuous operational conditions, making the series a trusted tool in professional environments.

Most popular related searches
  • Torque and angle of rotation controlled tightening process
  • Specification and documentation of the screwing process possible (wireless)
  • Torque range from 20 to 8,000Nm
  • Slim design and low weight, good ergonomics (grip in the center of gravity)
  • Locking adjustment of the angle head: easily adjustable in 24 steps of 15 ° (degrees) Secure screw assembly even in hard-to-reach places
  • Large color LCD display, multilingual with control and warning messages
  • Brushless motor with electronic torque cut-off
  • High torque output and precision: Reliable tightening of screw connections up to 8,000Nm with a repeat accuracy of ± 3%
  • Torque and angle of rotation controlled tightening process possible
  • Adjustable relaxation angle
  • Torque values ​​​​can be preset, customer-specific values ​​​​possible
  • Option: stepless torques (1 Nm steps)
  • Option: specification and documentation of the screwing process via wireless
  • Ergonomic operating position: drive and gear are decoupled via a swivel joint. This means that the drive can be turned into the optimal operating position easily and with little effort.
  • Incl. Charger and two lithium-ion high-performance batteries 18V 5.2 Ah
  • Extensive range of accessories such as B. Power sockets, inserts and supports are available in both standard and special designs.
  • Available as a 1-speed or 2-speed version.
  • Other types available on request.
