BHB Waschanlagen Vertriebs GmbH
BHB - Model EStW -Two Self-Driving Wash Carriages

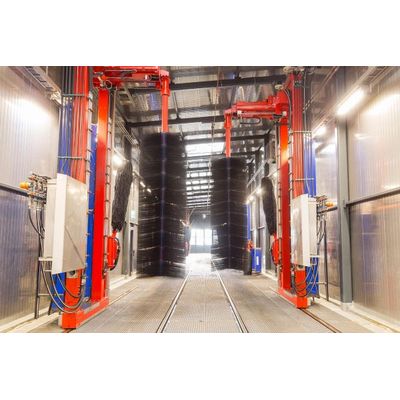

Built as two self-driving wash carriages with 1-2 side brushes and an optional front brush on each side of the rails. Configured for washing trains in drive-through wash halls with overhead line, or for washing trolleybuses.
Most popular related searches
- Torsion-resistant frame design.
- All traverse movements motorised with respective path measurement.
- 3-stage telescopic system for moving the side brushes perpendicular to the track.
- Side brush lifting unit for raising over the buffers when washing the front.
- Optional side brush pivoting in track axis by up to 45°.
- All steel parts with acid-proof C4/C5 coating, bearing and spray systems made from stainless steel.
- Control and switching elements incorporated in switching cabinet on the wash carriage.
- Optional attachment of front brush on separate column, height adjustable, pivotable up to 90° perpendicular to the track.
- Optional 3D pivot: additionally pivotable ± 30° along the track axis.
- Width of track: approx. 3.500 - 4800 mm, depending to the trains to be washed
- Weight: approx. 2.000 kg per wash trolley ( only side brush ), approx. 3.800 kg per wash trolley ( with side and front brush )
- Electrical supply: 13 kW (only with side brushes), 21 kW (side and front brushes),
