Biogascleans QSR - Biological Desulfurization Process System

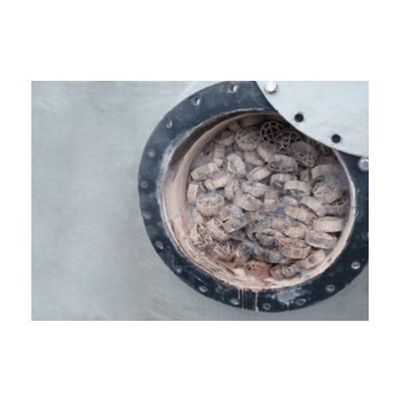

The biological desulfurization process produces sulfate (SO4) and elemental sulfur (S). The SO4 is drained out but the elemental sulfur will stick to the packing media and has to be removed on a regular bais. Biogasclean’s QSR® – Quick Sludge Removal – system is a vast improvement. Cleaning is required 2-4 times a year and can be done within one working day. During QSR® cleaning the tank is filled with water and pressurized air is injected in the bottom of the tank so the packing media is washed like in a big washing machine. The QSR® system makes it possible to clean the tank for sulfur and gypsum sludge without emptying the tank for packing media. This will reduce downtime and increase revenues.
The most important differences between Biogasclean’s solutions and alternative biological H2S removal systems are safety and automatic reliable operation.
- Safety. Injection of air into biogas is possible with a control system; without there is a substantial risk of creating dangerous situations with explosive mixture. Therefore, Biogasclean systems are supplied with a control system which will adjust air injection to the actual biogas flow and stop air injection in case there is no biogas flow. If the PTU is closed, the safety system will also remove the ignition source by cutting the power supply in case the gas detector should measure methane above 25% of the Lower Explosive Level (LEL).
- Safety – Learn more ?
- Automatic reliable operation. Safety is mandatory; but on top of that the control system also secures good performance even with fluctuations in the biogas flow. The system is automatically controlled by the PLC controller board which reduces the risk for manual errors and operation problems. The main function is to provide safe, optimal and stable conditions for the biological process. The signals can be made available in the control room.
- Low operating costs. The system uses no chemicals and has a very low electrical consumption. In many projects we use treated water from an anaerobic digester or an aeration pond as scrubber liquid and nutrient source. This is easily accessible and cheaper than water and industrial fertilizer.
- Guaranteed performance. We provide performance guarantees on all projects.
In other biological H2S removal systems the packing media has to be moved and cleaned outside the tank. This is a dirty job and will have a huge negative impact on the uptime.
