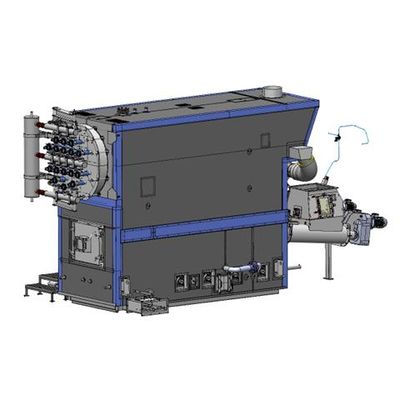

EcoHeat - Model EHT-T2 - Biomass boiler

EcoHeat - Model EHT-T2 -Biomass boiler

Nominal power output: 800 - 1200 kW @ - wt% woodchips 55% - G100, ÖNORM M7 133 The furnace is made as a steel pipe frame, insulated with masonry. Every second row of grates move. The grates are moved by hydraulic cylinders. The composition of the grate is resistant to high temperatures and substances that occur during wood chip burning process. Horizontal water heating boiler for closed water circulation system equipped with a compressed air cleaning system TURBO for cleaning flues. The ash cleaning system is activated by automatic control, operated by a hydraulic cylinder and two screw conveyors. The moving elements of the system are the ash pushers under the grate and the output channel ash pusher. The primary air ventilator creates a set air pressure in the room below the grate, the air flows through the grate, where the fuel burns with gasification and flue gases are formed.
