Bitrode Digital Cycler (BTDC)

FromBitrode Corporation

SHARE

The Bitrode Digital Cycler™ (BTDC) offers features such as HMI Touchscreen, slide-out modules for easy maintenance, and customizable KPIs. It supports various types of battery testing including EV/HEV battery cell testing, automotive & industrial cycle testing, full-featured battery testing, high power & voltage pack testing, and high current discharge testing.

Most popular related searches

battery testing

battery testing system

discharge testing system

high voltage power

high voltage testing

battery chemistry

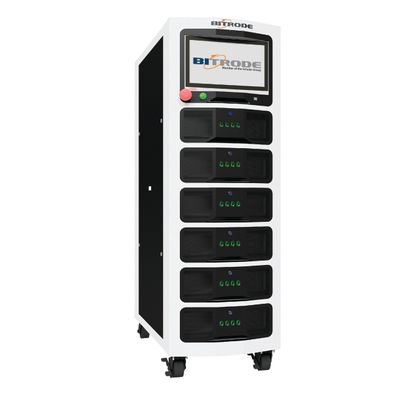

Bitrode Digital Cycler™ (BTDC™) is the ultimate battery testing solution, designed specifically for high-capacity cells, with exceptional performance specifications.

Full-featured life cycle test system
Research and development and production environments
Battery cells regardless of chemistry
Super- and ultra capacitors

Regenerative – discharge energy is recycled
Pulsing – DCIR and other applications
Bipolar – discharge below zero Volts
High circuit density – up to 28 channels in a single-bay cabinet
Circuit-circuit isolation – electrically isolated
Slide-out modules – easy maintenance with quick connectors at back
Paralleling capability – flexibility for tests that require higher currents
In-depth diagnostic capability – easier troubleshooting and problem resolution
Dual current ranges – higher accuracy at lower currents
CE (UL, CSA available upon request)

The HMI can be removed if not needed for the application
CAN Interface
Additional temperature, voltage, and pressure inputs and digital I/O connections
Stack tree light (requires digital outputs)
Open communication architecture customizable as needed to connect to:
- Existing automation infrastructure
- External and third-part I/O modules
- Environmental chambers
- Third-party software
Custom Hardware and Software engineering services available
