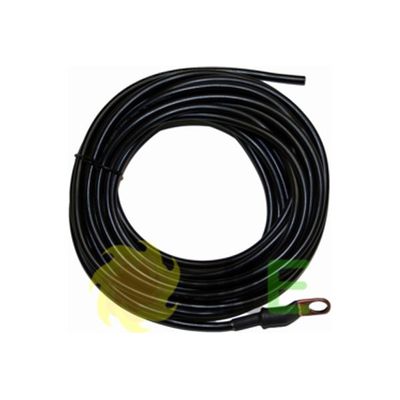

Blue Sky Energy Battery Temperature Sensor
From Charge Controllers
Applying the proper charge voltage is critical for achieving optimum battery performance and longevity. The ideal charge voltage required by batteries changes with battery temperature. The battery temperature sensor allows the charge controller to continuously adjust charge voltage based on actual battery temperature. Temperature compensation of charge voltage assures that the battery receives the proper charge voltage as battery temperature changes during normal operation.
-
Most popular related searches
Details:
The graph above shows how the Solar Boost 3024i would use the temperature sensor to adjust charge voltage to the required value
based on battery temperature. With out temperature compensation charge voltage would be too low at low battery temperatures leading to chronic under charging and battery damage due to sulfation. At high battery temperatures charge voltage would be too high leading to excessive water loss and undue degradation of the positive plate. Both of these conditions can impair battery performance and shorten battery life.
Specifications
- Accuracy : ±1.0ºC @ 25ºC • ±2.5ºC over full range
- Temp. Range : -40 – +100ºC
- Cable : 18awg 105ºC PVC
- Cable Length : 20 feet (6.1m)
- Sensor To Housing
- Breakdown Voltage : 150VDC Minimum
- Lug Mounting Hole : 0.400” (1.02cm) Nominal Diameter
