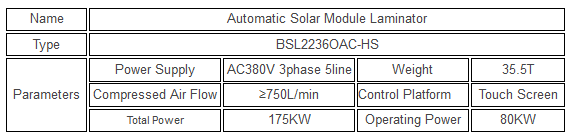

Boostsolar - Model BSL2236OAC-HS -Three Chambers Solar Module Laminators

Effective Laminating Size：2200 mm × 3600mm. Overall Dimension：Length 21900mm× Width 3665mm× Height 2200mm.
Heating Method：Heating oil. Compressed Air Pressure：0.6～0.8MPa. Vacuum Degree：100～40Pa. Vacuum Speed：70L/S. Temp Control Accuracy：±1.5℃. Temperature Control Range：room temp to 180℃. Temperature Uniformity：within effective laminating size≤±2℃. Laminating Chamber Height：30mm. Vacuum Time：Depends on laminating technology, suggest 5～8min. Cover Travel Distance：300mm.
