Qinhuangdao Boostsolar Photovoltaic Equipment Co., Ltd products

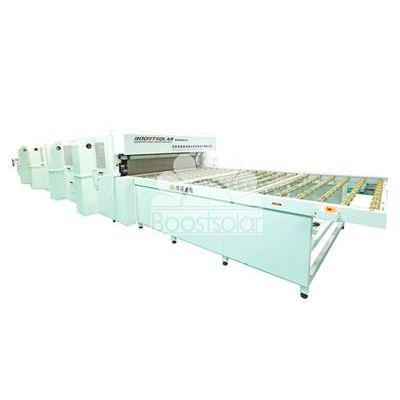

Effective Laminating  Area 2400 mm × 3600mm×4. Overall Dimension  17700mm×3540mm×2900mm  (only laminator exclude auxiliary tools such as vacuum pump and heating station）. Heating type heating transfer oil. Compressed Air Pressure  0.6～0.8MPa. Working Vacuum Degree   100～40Pa. Evacuation Speed  ≥70L/S. Precision of Temperature Control    ±1.5℃.
Temperature control range  Room Temperature--180℃. Temperature Uniformity Laminating area≤±2℃. Height of laminating chamber 30mm. Evacuation Time   Depending on the process, suggesting: 5～8min. Cover moving range 200mm

Effective Laminating Size：2200 mm × 3600mm. Overall Dimension：Length 21900mm× Width 3665mm× Height 2200mm.
Heating Method：Heating oil. Compressed Air Pressure：0.6～0.8MPa. Vacuum Degree：100～40Pa. Vacuum Speed：70L/S. Temp Control Accuracy：±1.5℃. Temperature Control Range：room temp to 180℃. Temperature Uniformity：within effective laminating size≤±2℃. Laminating Chamber Height：30mm. Vacuum Time：Depends on laminating technology, suggest 5～8min. Cover Travel Distance：300mm.

Laminating Size：2200 mm × 3600mm. Dimension：Seeing Outside Drawing.

Power AC380V 3phrase5line . Compressed Air Pressure 0.6～0.8MPa.

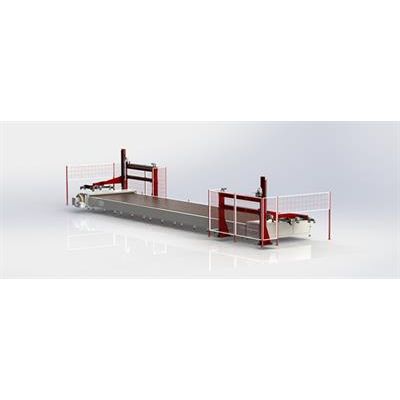

Power：3.0kW. Module Transmission Speed：0～2m/min. Conveyor chain load：≤10000kg. Height of Transfer：420±50mm. Width of Transfer：1230mm. Dimension：17.2×2×0.65m. Floor Weight：1000kg/m2. Working Power：AC380V±10%  50Hz  3 phases 5 lline. Control Voltage：DC24V. Working Temperature：－10℃～＋55℃。

Air pressure: 0.4-0.8MPa. Supply voltage:AC110V/60Hz（can change according to customer requirements）. Total power: 1.5KW.
Cutting length: 20-2000mm. Error in length: ±2mm. Cutting width: 10-1100mm. Equipment can real-time display: the current batch process number, accumulated processing in batches and actual production efficiency.

Save floor space. High capacity. High precision flux spraying system. Infrared welding . Sectional heated plate, more suitable to the welding process . Auto CCD camera calibration . Servo controlling system .  2,3 ,4, 5 bus bar welding . Capacity: 3000 pcs/h. Can weld full cell and half cell.

Max. framing up overall dimension(mm): 2050×1100×（35～50mm）. Framing up accuracy: the difference between opposite sides within±1mm. Min. framing up overall dimension (mm): 1500×750×（35～50mm）. Difference between the diagonal sides within ±1.5mm. Max. equipment overall dimension(mm): 2240mm×2100mm×950～1000mm. Difference between the four angles within ±0.5°. Driving power: pneumatic power. Working power: 0.5Mpa～0.8Mpa. Power: 600w Weight: about 1200Kg. Operate mode: automatic/ by manual. Power supply: 380V 50HZ.

Applicable Process Before laminating. Application silicon solar module  (special equipment for testing solar modules internal defects before laminating).
