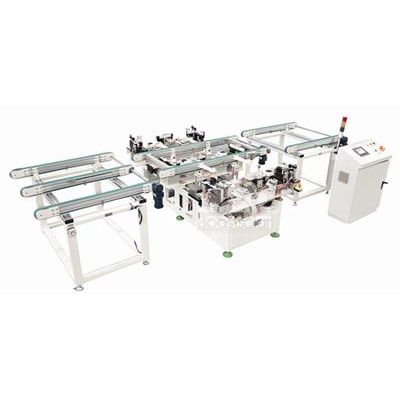

Boostsolar - Model BSZK03E -Automatic Framing Machine

Max. framing up overall dimension(mm): 2050×1100×（35～50mm）. Framing up accuracy: the difference between opposite sides within±1mm. Min. framing up overall dimension (mm): 1500×750×（35～50mm）. Difference between the diagonal sides within ±1.5mm. Max. equipment overall dimension(mm): 2240mm×2100mm×950～1000mm. Difference between the four angles within ±0.5°. Driving power: pneumatic power. Working power: 0.5Mpa～0.8Mpa. Power: 600w Weight: about 1200Kg. Operate mode: automatic/ by manual. Power supply: 380V 50HZ.
