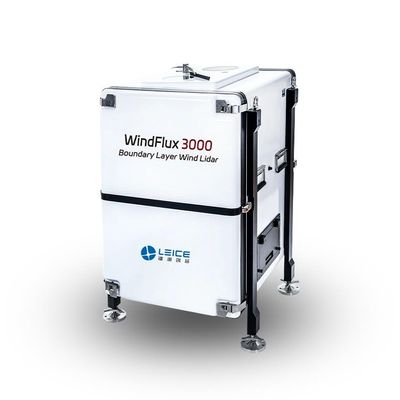

Leice - Model WindFlux 3000 -Boundary Layer Wind Lidar
WindFlux 3000 Boundary Layer Wind Lidar is based on the optical pulse coherence Doppler frequency shift detection principle, enabling refined detection of the three-dimensional wind field in the lower and middle troposphere, including the atmospheric boundary layer. It provides real-time output of data products such as wind profiles, turbulence intensity, vertical airflow, boundary layer height, cloud base height, signal-to-noise ratio, backscattering coefficient, ground temperature, humidity, pressure, and more. The system is widely used in meteorological and climate research, assimilation of meteorological forecasting models, studies on atmospheric material fluxes, regional transport and diffusion of pollutants, and low-altitude wind shear detection.
- High accuracy
- High resolution
- Unmanned operation
- High robustness
- Eye-safe
- Laser Wavelength: 1550nm
- Maximum Detection Distance: 6000m
- Spatial Resolution: 15m/30m/60m/150m(configurable)
- Time Resolution: 1s~10min(configurable)
- Wind Speed Measurement Accuracy : ≤0.1m/s
- Wind Direction Measurement Accuracy : ≤3°
- Weight: <150kg
Radial velocity, spectral width, spectral intensity, signal-to-noise ratio, horizontal wind speed, horizontal wind direction, vertical airflow, turbulence intensity, wind shear index, atmospheric extinction coefficient, atmospheric backscattering coefficient, and cloud base height.
- Air Quality Improvement and Management in Key Regions
- Fine Traceability of Atmospheric Particulate Matter Pollution
- Analysis of Atmospheric Pollution Causes
- Meteorological Support for Fire Emergency Rescue
- Wind Measurement Network in Complex Terrain
- Integrated Meteorological Observation and Service Platform
- Refined Meteorological Observation and Forecasting
- Wind Power Prediction
- Preliminary Survey of Onshore and Offshore Wind Resources
