BoWex Junior - Gear Couplings
From Power Transmission Technology - Couplings - Gear Couplings

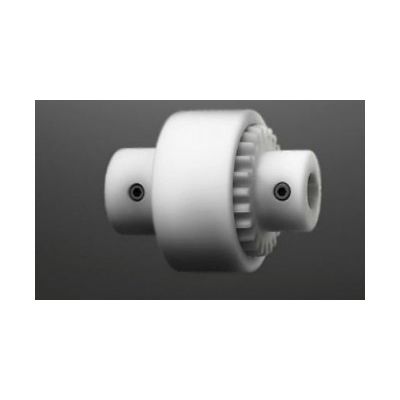

BoWex Curved-tooth gear couplings are flexible shaft connections for a positive torque transmission and specifically suitable to compensate for axial, radial and angular shaft misalignment. According to the well-known effect of curved-tooth gear couplings any edge pressure in the spline in case of angular and radial displacements is avoided so that BoWex® couplings are almost free from wear.
-
Most popular related searches
General Description
The material polyamide allows for maintenance-free continuous operation with very low friction on the teeth.
Due to the double cardanic operation of BoWex couplings restoring forces may be neglected in case of angular and radial displacements and periodic fluctuations in angular velocity do not arise.
BoWex couplings can be assembled both vertically or horizontally with no need for any special assembly tools.
The smooth and hard surface (crystalline structure) and the high thermal stability and resistance to lubricants, fuels, hydraulic fluids, dissolvents, etc. make polyamide an ideal material for components stressed by sliding, particularly for the coupling production.
Features
- Curved-tooth plug-in coupling, two-part, made from nylon
- Maintenance-free due to material combination nylon
- Low own weight as well as low flywheel torques
- Operative range -25° C to +100° C
- Including feather keyway
