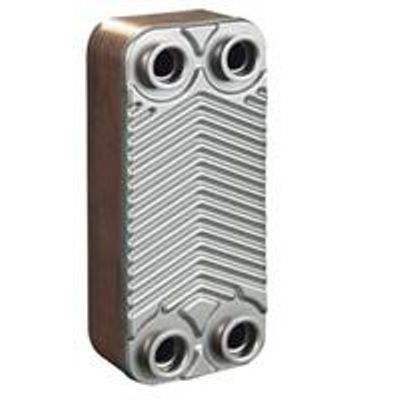

Forwon - Model FHC014B -Brazed Plate Heat Exchangers

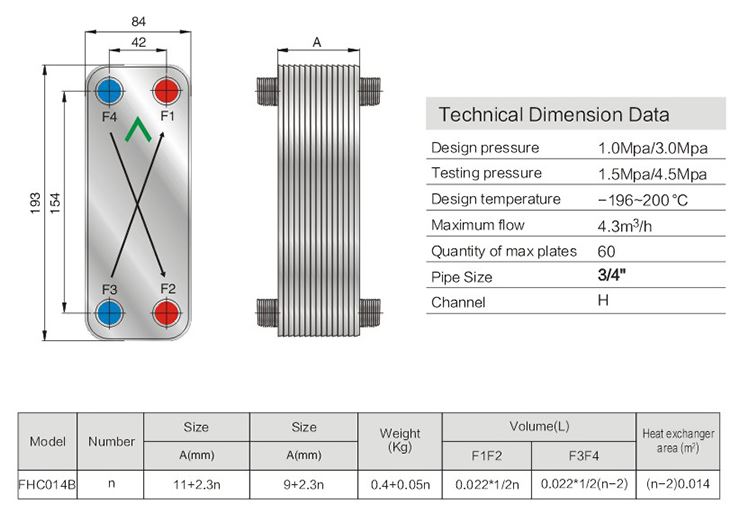

Design pressure: 1.0Mpa/3.0Mpa.Test pressure: 1.5Mpa/4.5Mpa. Design temperature: -196~200 °C. Maximum flow: 4.3m3/h. Quantity of max plates:60. Pipe Size:3/4". Channel: H.
