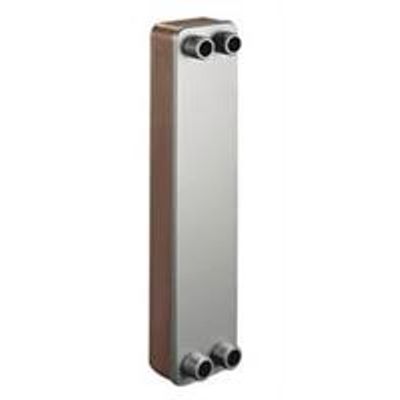

Forwon - Model FHC052G -Brazed Plate Heat Exchangers
Zhejiang Forwon brazed plate heat exchangers are designed for and commonly used in all types of refrigeration.cooling,air conditioning and heating applications.
Most popular related searches
brazed plate heat exchanger
plate heat exchanger
heat exchanger
shell-and-tube heat exchanger
shell and tube heat exchanger
brazing heat exchanger
brazed heat exchanger
tube heat exchanger
heat exchanger design
heat exchanger tube

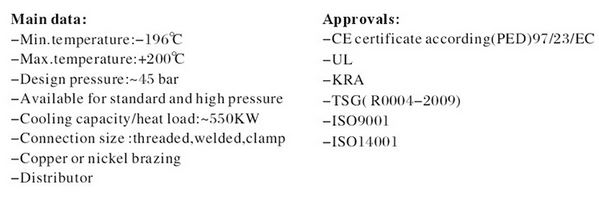

- Design pressure: 3.0Mpa/4.5Mpa
- Test pressure: 4.5Mpa/6.75Mpa
- Design temperature: -196~200 °C
- Maximum flow: 15m3/h
- Quantity of max plates:150
- Pipe Size:1"1/4`
- Channel: H
- Compact structure: adopt thin stainless steel, high heat transfer factors.
- Reliability: adopt 316L and copper as well as high quality brazing works. Endure high pressure and temperature. Long life and no maintenance need.
- Reduce water require: with the high heat transfer efficiency, only needs 1/3 water usage compare to shell and tube exchanger under same condition
- Lightly: Only 20-30% weight compare to shell and tube heat exchanger and reduce the logistics cost.
- Low fouling factors: high disorderly flow lower the fouling condition, reduce the maintain.
- With distributor: increase the refrigerant evaporating efficiency and reduce the risks by using distributor to force the refrigerant flow direction.
