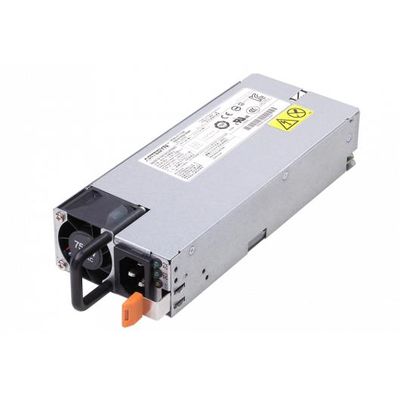

Advanced Energy - Model Artesyn - CSV Series -Bulk Front End Power AC-DC Supply
The CSV series bulk front end power AC-DC supply is designed for systems where scalability and density are requirements. With multiple power levels to choose from, this family provides designers with the ability to change the power supply to optimize according to system power consumption.
Most popular related searches
AC-DC power supply
DC power supply
power supply unit
power factor correction
DC power unit
power factor
power optimization
- 550 W to 2000 W output power
- N+N Redundant
- Hot-swap
- Internal OR`ing
- 12.0 V housekeeping
- Platinum efficiency
- High efficiency (94% @ 230 VAC) 50% load
- Throttle function
- EMI Class A
- EN61000 Immunity
- Low iTHD
- Active current sharing
- PMBus compliant
- 1U power supply
- Active Power Factor Correction
- EN61000-3-2 Harmonic compliance
- Inrush current control
- 80PLUS® Platinum efficiency
- N+N Redundant
- Hot-pluggable
- Active current sharing
- PMBus® compliant
- Two-year warranty
- Output Power (W): 2000
- Length (Inches): 7.68
- Width (Inches): 3.15
- Height (Inches): 1.57
- Mounting Type: Rack-mount
- Minimum Output Current (A): 45.1
- Maximum Output Current (A): 164
- Output Voltage Range (V): 0V to 0V
- Minimum Output Power (W): 550
- Maximum Output Power (W): 2000
- Minimum Input Voltage (V): 90
- Maximum Input Voltage (V): 264
- Warranty (Years): 2
